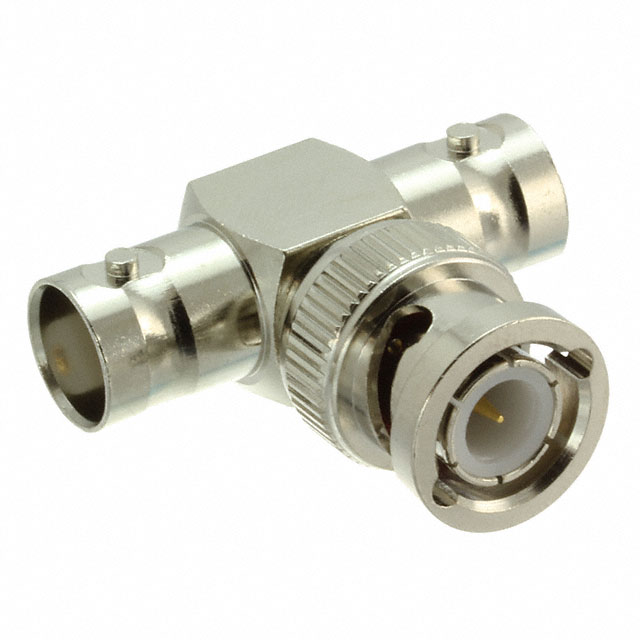

CT2411

Active

Cal Test Electronics

COAX ADAPT BNC TO BNC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CT2411

Active

Cal Test Electronics

COAX ADAPT BNC TO BNC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CT2411

Adapter Series	BNC to BNC, Dual
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Conversion Type	Same Series
Convert From (Adapter End)	BNC Plug, Male Pin
Convert To (Adapter End)	BNC Jack, Female Socket (2)
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Insertion Loss	0.2 dB
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Style	T-Shape

- Series

Part	Adapter Series	Center Gender	Conversion Type	Body Finish	Body Material	Convert To (Adapter End)	Adapter Type	Impedance	Operating Temperature [Max]	Operating Temperature [Min]	Center Contact Material	Dielectric Material	Mounting Type	Style	Center Contact Plating	Convert From (Adapter End)	Frequency - Max [Max]	Insertion Loss	Fastening Type
Cal Test Electronics CT3319	N to N	Female to Female	Same Series	White Bronze	Brass	Female Socket (2) N Jack	Jack to Jack	50 Ohms	155 °C	-55 °C	Beryllium Copper Brass	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	T-Shape	Gold	Female Socket N Jack	11 GHz
Cal Test Electronics CT2771	BNC to N	Female to Female	Between Series	Nickel	Brass	Female Socket N Jack	Jack to Jack	50 Ohms	80 C	-20 C	Beryllium Copper Brass	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Straight	Gold	BNC Jack Female Socket	4 GHz	0.2 dB	Bayonet Lock Threaded
Cal Test Electronics CT3344	BNC to BNC Dual	Female to Female	Same Series	White Bronze	Brass	BNC Jack Female Socket (2)	Jack to Jack	50 Ohms			Beryllium Copper Brass	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	T-Shape	Gold	BNC Jack Female Socket	10 GHz		Bayonet Lock
Cal Test Electronics CT3350	N to N	Female to Female	Same Series	White Bronze	Brass	Female Socket N Jack	Jack to Jack	50 Ohms			Beryllium Copper Brass	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Straight	Gold	Female Socket N Jack	11 GHz
Cal Test Electronics CT3395	SMA to SMA	Male to Male	Same Series	Gold	Brass	Male Pin SMA Plug	Plug to Plug	50 Ohms	165 °C	-65 ░C	Beryllium Copper Brass	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Straight	Gold	SMA Plug Male Pin	12.4 GHz
Cal Test Electronics CT3313	BNC to BNC		Same Series	Nickel	Brass	BNC Jack Female Socket	Plug to Jack	50 Ohms			Beryllium Copper Brass	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line) Right Angle	Right Angle	Gold	BNC Plug Male Pin	4 GHz	0.2 dB	Bayonet Lock
Cal Test Electronics CT2411	BNC to BNC Dual		Same Series	Nickel	Brass	BNC Jack Female Socket (2)	Plug to Jack	50 Ohms	80 C	-20 C	Brass	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	T-Shape	Gold	BNC Plug Male Pin	4 GHz	0.2 dB	Bayonet Lock
Cal Test Electronics CT2759	N to N	Male to Male	Same Series	Nickel	Brass	Male Pin N Plug	Plug to Plug	50 Ohms	80 C	-20 C	Brass	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Straight	Gold	N Plug Male Pin	8 GHz
Cal Test Electronics CT2761	N to N Dual	Female to Female	Same Series	Nickel	Brass	Female Socket (2) N Jack	Jack to Jack	50 Ohms	80 C	-20 C	Brass	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	T-Shape	Gold	Female Socket N Jack	8 GHz

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.30

Description

General part information

- Series

Adapter Coaxial Connector BNC Plug, Male Pin To BNC Jack, Female Socket (2) 50 Ohms

Documents

Technical documentation and resources
