WR9QX375T00NAIMR6B

Active

GlobTek, Inc.

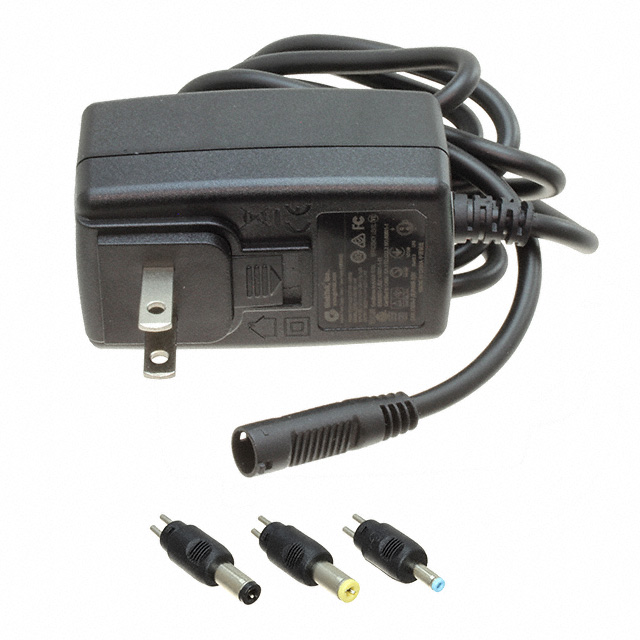

AC/DC WALL MOUNT ADAPTER 48V 18W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 48V 18W

Technical Specifications

Parameters and characteristics for this part

Specification	WR9QX375T00NAIMR6B

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	UKRSepro, NOM, CCC, ETL, cETLus, LPS, BIS, EAC, UL, CB, S-Mark, VCCI, CE, PSE, RCM
Cord Length	1.5 m
Cord Length	59 in
Current - Output (Max) [Max]	375 mA
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	Multi-Blade
Input Type	Multi-Blade (Sold Separately)
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug Kit, 1.3mm x 3.5mm
Power (Watts)	18 W
Region Utilized	International
Size / Dimension [x]	74 mm
Size / Dimension [x]	2.91 "
Size / Dimension [y]	43.5 mm
Size / Dimension [y]	1.71 in
Size / Dimension [z]	36.8 mm
Size / Dimension [z]	1.45 in
Standard Number	60601-1-2, 61558-1, 60335-1, 60601-1-11, 1310, 60950-1, 62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	48 V

Part	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Standard Number	Cord Length	Cord Length	Input Type	Efficiency	Form	Current - Output (Max) [Max]	No Load Power Consumption [Max]	Output Connector	Power (Watts)	Input Connector	Voltage - Output	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Region Utilized
GlobTek, Inc. WR9QX375T00NAIMR6B	90 VAC	264 VAC	BIS CB CCC CE cETLus EAC ETL LPS NOM PSE RCM S-Mark UKRSepro UL VCCI	Household Appliances ITE (Commercial) Medical	-20 C	40 °C	1310 60335-1 60601-1-11 60601-1-2 60950-1 61558-1 62368-1	1.5 m	59 in	Multi-Blade (Sold Separately)	Level VI	Wall Mount (Class II)	375 mA	75 mW	1.3mm x 3.5mm Barrel Plug Kit	18 W	Multi-Blade	48 V	36.8 mm	74 mm	2.91 "	43.5 mm	1.71 in	1.45 in	International

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

48V 18 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
