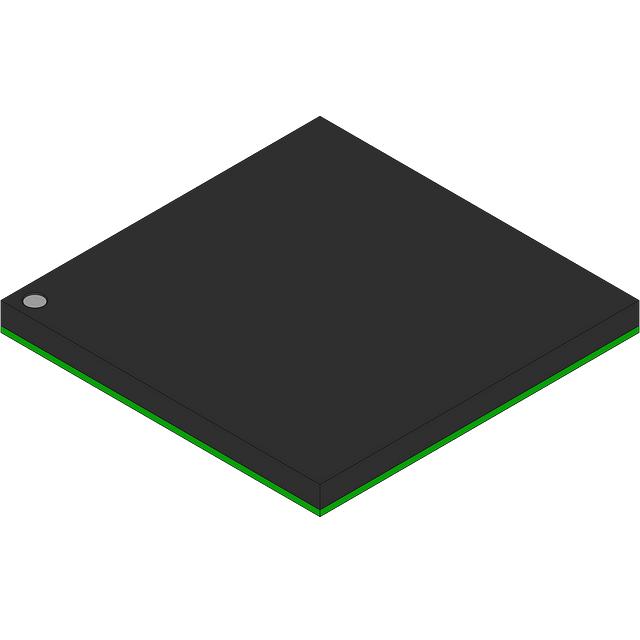

ATSAMA5D43A-CU

Active

Atmel

IC MPU SAMA5D4 600MHZ 289LFBGA

Search across all available documentation for this part.

Active

Atmel

IC MPU SAMA5D4 600MHZ 289LFBGA

Technical Specifications

Parameters and characteristics for this part

Specification	ATSAMA5D43A-CU

Additional Interfaces	MMC/SD/SDIO, I2C, UART, SSC, EBI, SPI, USART
Co-Processors/DSP	NEON™ SIMD, Multimedia
Core Processor	ARM® Cortex®-A5
Display & Interface Controllers	Touchscreen, LCD
Ethernet	1
Ethernet [Max]	100 Mbps
Ethernet [Min]	10 Mbps
Graphics Acceleration	True
Mounting Type	Surface Mount
Number of Cores/Bus Width	32 Bit, 1 Core
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	289-LFBGA
RAM Controllers	LPDDR, DDR2, LPDDR2
Security Features	TRNG, TDES, AES, SHA
Speed	600 MHz
Supplier Device Package	289-LFBGA (14x14)
USB	USB 2.0 (3)

Part	USB	Security Features	Core Processor	Graphics Acceleration	Number of Cores/Bus Width	Co-Processors/DSP	Package / Case	Additional Interfaces	Mounting Type	Display & Interface Controllers	Operating Temperature [Max]	Operating Temperature [Min]	RAM Controllers	Ethernet	Ethernet [Max]	Ethernet [Min]	Supplier Device Package	Speed
Atmel ATSAMA5D43A-CU	USB 2.0 (3)	AES SHA TDES TRNG	ARM® Cortex®-A5		1 Core 32 Bit	Multimedia NEON™ SIMD	289-LFBGA	EBI I2C MMC/SD/SDIO SPI SSC UART USART	Surface Mount	LCD Touchscreen	85 °C	-40 °C	DDR2 LPDDR LPDDR2	1	100 Mbps	10 Mbps	289-LFBGA (14x14)	600 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 12.33

General part information

ARM® Cortex®-A5 Microprocessor IC SAMA5D4 1 Core, 32-Bit 600MHz 289-LFBGA (14x14)
