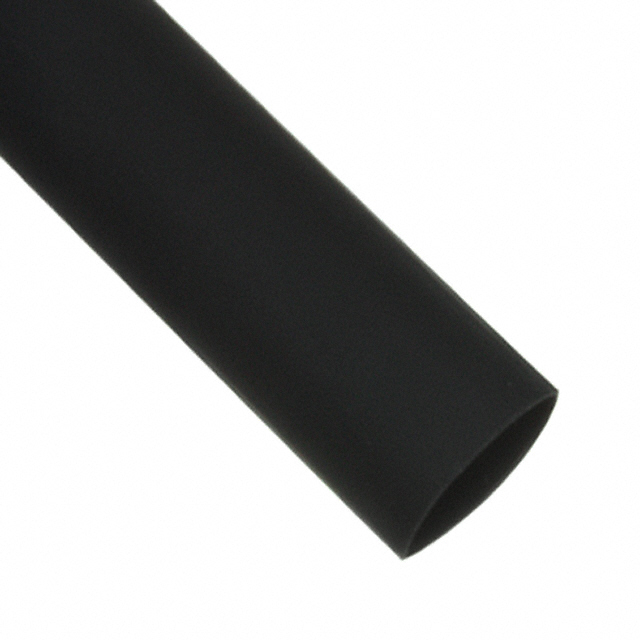

Q2-F-5/16-01-SS250FT

Active

Qualtek

HEATSHRK BLK 5/16X1.5" 50=50PC

Search across all available documentation for this part.

Active

Qualtek

HEATSHRK BLK 5/16X1.5" 50=50PC

Technical Specifications

Parameters and characteristics for this part

Specification	Q2-F-5/16-01-SS250FT

Color	Black
Features	Flame Retardant
Inner Diameter - Recovered [diameter]	3.99 mm
Inner Diameter - Recovered [diameter]	0.157 in
Inner Diameter - Supplied [diameter]	8 mm
Inner Diameter - Supplied [diameter]	0.315 in
Length	Enter Number of Feet in Order Quantity
Length	3 ", 1.5 "
Length	76.2 mm, 38.1 mm
Length	0.25 ft, 0.125 '
Material	Polyolefin (PO)
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.61 mm
Recovered Wall Thickness	0.024 in
Shelf Life	144 Months
Shrink Temperature	70 °C
Shrinkage Ratio	2 to 1
Spool Size	76.2 m
Spool Size	250 ft
Storage/Refrigeration Temperature [Max]	40 °C
Storage/Refrigeration Temperature [Min]	-10 °C, -50 °F
Type	Tubing, Flexible

Part	Length	Color	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Features	Material	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Length	Length	Length	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Shrink Temperature	Shrinkage Ratio	Recovered Wall Thickness	Recovered Wall Thickness	Type	Operating Temperature [Max]	Operating Temperature [Min]	Spool Size	Spool Size	Shelf Life
Qualtek Q2-F-5/16-01-SS250FT	Enter Number of Feet in Order Quantity	Black	-50 °F -10 °C	40 °C	Flame Retardant	Polyolefin (PO)	8 mm	0.315 in	1.5 " 3 "	38.1 mm 76.2 mm	0.125 ' 0.25 ft	3.99 mm	0.157 in	70 °C	2 to 1	0.61 mm	0.024 in	Tubing Flexible	135 °C	-55 °C	76.2 m	250 ft	144 Months

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Shrink Tubing, Flexible 0.315" (8.00mm) 2 to 1 Black 0.125' (38.10mm, 1.50")
