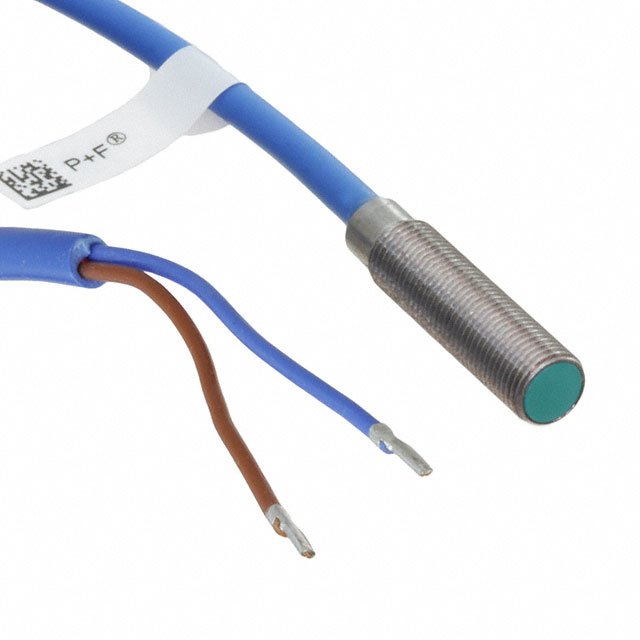

NJ0.8-5GM-N

Active

PEPPERL+FUCHS

INDUCTIVE SEN 0.8MM NAMUR

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

INDUCTIVE SEN 0.8MM NAMUR

Technical Specifications

Parameters and characteristics for this part

Specification	NJ0.8-5GM-N

Indicator [custom]	No Indicator
Ingress Protection	IP67
Material - Body	Stainless Steel
Operating Temperature [custom]	100 °C, -25 °C
Output Type	SCR-NC, 2-Wire
Package / Case	Cylinder, Threaded - M5
Sensing Distance	0.8 mm
Sensing Distance	0.031 "
Sensor Type	Inductive
Shielding	Unshielded
Termination Style	Cable
Voltage - Supply	8.2 V

Part	Operating Temperature [custom]	Voltage - Supply	Indicator [custom]	Material - Body	Ingress Protection	Package / Case	Termination Style	Output Type	Sensor Type	Shielding	Sensing Distance	Sensing Distance
PEPPERL+FUCHS NJ0.8-5GM-N	-25 °C 100 °C	8.2 V	No Indicator	Stainless Steel	IP67	Cylinder Threaded - M5	Cable	SCR-NC 2-Wire	Inductive	Unshielded	0.8 mm	0.031 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 106.95

General part information

INDUCTIVE SEN 0.8MM NAMUR
