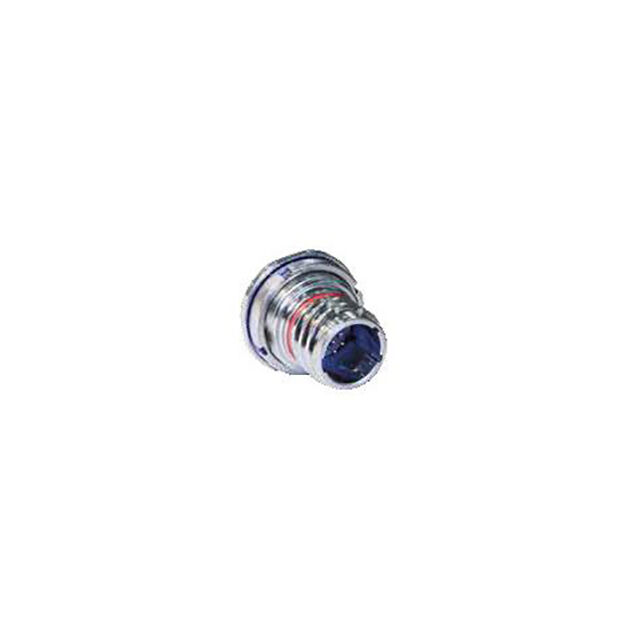

805-004-02ZNU11-19SA

Active

Glenair

MIGHT MOUSE CONNECTOR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

805-004-02ZNU11-19SA

Active

Glenair

MIGHT MOUSE CONNECTOR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	805-004-02ZNU11-19SA

Applications	Military, Aerospace, Aviation
Backshell Material, Plating	Aluminum
Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Features	Strain Relief, Backshell
Ingress Protection	Environment Sealed
Insert Material	Fluorosilicone
Material Flammability Rating	Non Flammable
Mounting Feature	Flange
Mounting Type	Free Hanging (In-Line), Panel Mount
Number of Positions	19
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-65 ░C
Orientation	A, N
Primary Material	Metal
Shell Finish	Black Zinc Nickel, Zinc Nickel
Shell Material	Aluminum
Shell Size - Insert [Max]	19
Shell Size - Insert [Min]	11
Shielding	Shielded
Termination	Crimp
Voltage Rating	750 Vrms

805-004 Series

...

Part	Features	Contact Material	Mounting Type	Voltage Rating	Orientation	Shell Finish	Connector Type	Primary Material	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Contact Finish - Mating	Color	Termination	Insert Material	Backshell Material, Plating	Shell Size - Insert	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shielding	Current Rating (Amps)	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Shell Material	Ingress Protection	Number of Positions	Mounting Feature	Shell Size - Insert	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]
Glenair 805-004-01Z112-26SA	Backshell Strain Relief	Copper Alloy	Free Hanging (In-Line)	750 Vrms	A N	Passivated	Receptacle Female Sockets	Metal	Non Flammable	-65 ░C	200 °C 347 °F	Aerospace Aviation Military	Gold	Silver	Crimp Threaded	Fluorosilicone	Aluminum	12	1.27 µm	50 µin	Shielded	5 A	12	26	Stainless Steel	Environment Sealed	26
Glenair 805-004-02ZNU11-19SA	Backshell Strain Relief	Copper Alloy	Free Hanging (In-Line) Panel Mount	750 Vrms	A N	Black Zinc Nickel Zinc Nickel	Receptacle Female Sockets	Metal	Non Flammable	-65 ░C	347 °F	Aerospace Aviation Military	Gold	Black	Crimp	Fluorosilicone	Aluminum		1.27 µm	50 µin	Shielded	5 A	11	19	Aluminum	Environment Sealed	19	Flange
Glenair 805-004-02M11-19SA	Backshell Strain Relief	Copper Alloy		750 Vrms	A N	Electroless Nickel	Receptacle Female Sockets	Metal	Non Flammable	-65 ░C	200 °C 347 °F	Aerospace Aviation Military	Gold	Silver	Crimp Threaded	Fluorosilicone	Aluminum		1.27 µm	50 µin	Shielded	5 A	11	19	Aluminum	Environment Sealed	19	Flange
Glenair 805-004-01NF10-2SA	Backshell Strain Relief	Copper Alloy	Free Hanging (In-Line)	1.8 kVAC	A N	Cadmium Olive Drab Cadmium	Receptacle Female Sockets	Metal	Non Flammable	-65 ░C	347 °F	Aerospace Aviation Military	Gold	Olive Drab	Crimp Threaded	Fluorosilicone	Aluminum		1.27 µm	50 µin	Shielded	23 A			Aluminum	Environment Sealed	2		10-2
Glenair 805-004-07M10-13SB	Backshell Strain Relief	Copper Alloy		750 Vrms	B	Electroless Nickel	Receptacle Female Sockets	Metal	Non Flammable	-65 ░C	200 °C 347 °F	Aerospace Aviation Military	Gold	Silver	Crimp Threaded	Fluorosilicone	Aluminum		1.27 µm	50 µin	Shielded	5 A	10	13	Aluminum	Environment Sealed	13	Bulkhead - Front Side Nut
Glenair 805-004-01NF15-37PA	Backshell Strain Relief	Copper Alloy	Free Hanging (In-Line)	750 Vrms	A N	Cadmium Olive Drab Cadmium	Male Pins Receptacle	Metal	Non Flammable	-65 ░C	347 °F	Aerospace Aviation Military	Gold	Olive Drab	Crimp Threaded	Fluorosilicone	Aluminum		1.27 µm	50 µin	Shielded	5 A			Aluminum	Environment Sealed	37			37	15
Glenair 805-004-07M12-26SD	Backshell Strain Relief	Copper Alloy			D	Electroless Nickel	Receptacle Female Sockets	Metal		-65 ░C	200 °C	Military	Gold	Silver	Crimp				1.27 µm	50 µin	Shielded	5 A	12	26	Aluminum	Environment Sealed	26	Bulkhead - Front Side Nut
Glenair 805-004-01M11-19PA	Backshell Strain Relief	Copper Alloy	Free Hanging (In-Line)	750 Vrms	A N	Electroless Nickel	Male Pins Receptacle	Metal	Non Flammable	-65 ░C	200 °C 347 °F	Aerospace Aviation Military	Gold	Silver	Crimp Threaded	Fluorosilicone	Aluminum		1.27 µm	50 µin	Shielded	5 A	11	19	Aluminum	Environment Sealed	19
Glenair 805-004-07M9-10SB	Backshell Strain Relief	Copper Alloy		750 Vrms	B	Electroless Nickel	Receptacle Female Sockets	Metal	Non Flammable	-65 ░C	200 °C 347 °F	Aerospace Aviation Military	Gold	Silver	Crimp Threaded	Fluorosilicone	Aluminum		1.27 µm	50 µin	Shielded	5 A	9	10	Aluminum	Environment Sealed	10	Bulkhead - Front Side Nut
Glenair 805-004-07MT10-13SA	Backshell Strain Relief	Copper Alloy		750 Vrms	A N	Nickel PTFE	Receptacle Female Sockets	Metal	Non Flammable	-65 ░C	347 °F	Aerospace Aviation Military	Gold	Silver	Crimp Threaded	Fluorosilicone	Aluminum		1.27 µm	50 µin	Shielded	5 A	10	13	Aluminum	Environment Sealed	13	Bulkhead - Front Side Nut

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 2010.26
		4	$ 1519.28
		10	$ 949.54
		20	$ 727.26
		50	$ 555.82
	Bulk	1	$ 1479.46

Description

General part information

805-004 Series

19 Position Circular Connector Receptacle, Female Sockets Crimp

Documents

Technical documentation and resources
