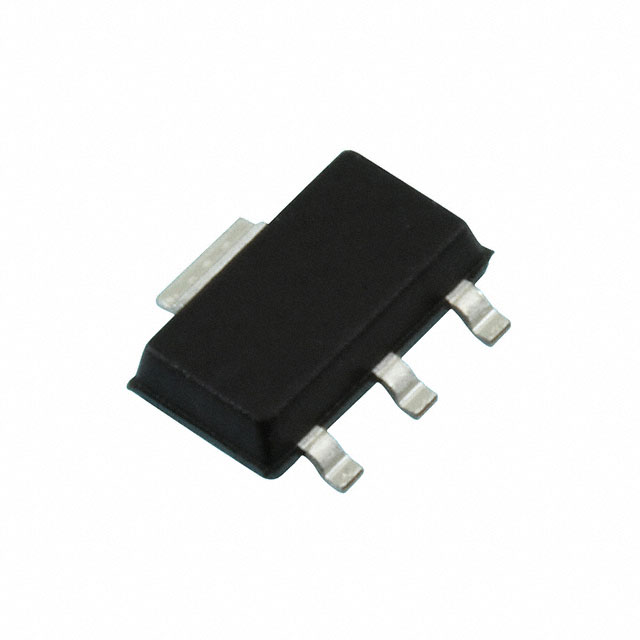

HAL1822SF-A
ObsoleteEPCOS - TDK Electronics
SENSOR HALL ANALOG SOT89B-1
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HAL1822SF-A
ObsoleteEPCOS - TDK Electronics
SENSOR HALL ANALOG SOT89B-1
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HAL1822SF-A |
|---|---|
| Axis | Single |
| Bandwidth | 2.5 kHz |
| Current - Output (Max) [Max] | 1 mA |
| Current - Supply (Max) [Max] | 10 mA |
| Features | Temperature Compensated |
| Mounting Type | Surface Mount |
| Output Type | Analog Voltage |
| Package / Case | TO-243AA, Variant |
| Resolution | 10 b |
| Sensing Range [Max] | 2.3 mT |
| Sensing Range [Min] | -2.3 mT |
| Supplier Device Package | SOT-89B-1 |
| Technology | Hall Effect |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
HAL1822 Series
Hall Effect Sensor Single Axis SOT-89B-1
