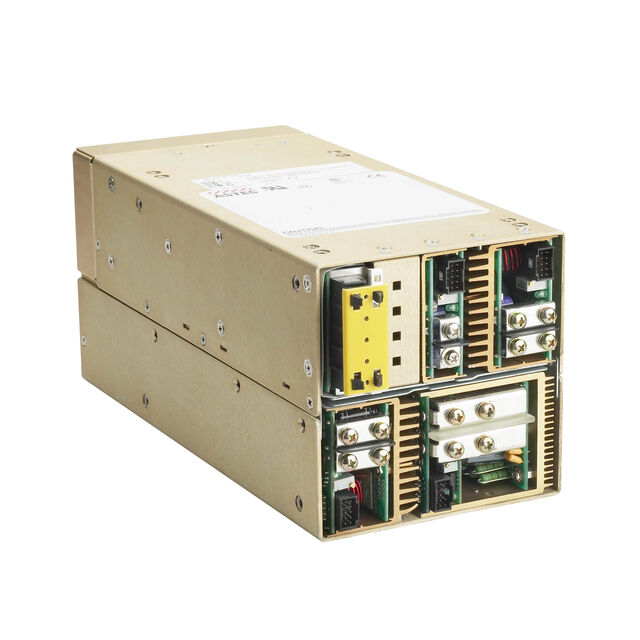

IVS3-3W0-1W0-2E0-2V0-1Q0-1W0-4LL0-33-A

Active

ARTESYN / Advanced Energy

AC/DC CNVT 48V 5V 42V 24V 2X48V

Search across all available documentation for this part.

Active

ARTESYN / Advanced Energy

AC/DC CNVT 48V 5V 42V 24V 2X48V

Technical Specifications

Parameters and characteristics for this part

Specification	IVS3-3W0-1W0-2E0-2V0-1Q0-1W0-4LL0-33-A

Applications	ITE (Commercial), Medical
Approval Agency	CB, CSA, UL, CE
Current - Output 1	19.6 A
Current - Output 2	60 A
Current - Output 3	7.5 A
Current - Output 4	8.5 A
Current - Output 5	4 A
Current - Output 6	10 A
Efficiency	85 %
Features	Adjustable Output, Remote Sense, PMBus™, I2C Interface, PFC, Remote On/Off, Standby Output, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	7
Power (Watts)	2120 W
Size / Dimension [x]	279.4 mm
Size / Dimension [x]	11 in
Size / Dimension [y]	8 in
Size / Dimension [y]	203.2 mm
Size / Dimension [z]	127 mm
Size / Dimension [z]	5 in
Standard Number	60950-1, 60601-1
Type	Enclosed
Voltage - Input [Max]	300 VDC, 264 VAC
Voltage - Input [Min]	120 VDC, 90 VAC
Voltage - Output 1	48 V
Voltage - Output 2	5 V
Voltage - Output 4	24 V
Voltage - Output 5	48 V
Voltage - Output 6	12 V

Part	Number of Outputs	Efficiency	Power (Watts)	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Type	Mounting Type	Features	Voltage - Input [Min]	Voltage - Input [Max]	Voltage - Output 1	Approval Agency	Current - Output 1	Applications	Standard Number	Minimum Load Required	Voltage - Output 6	Voltage - Output 4	Current - Output 3	Current - Output 5	Current - Output 6	Voltage - Output 2	Current - Output 4	Voltage - Output 5	Current - Output 2
ARTESYN / Advanced Energy IVS3-3W0-3W0-3W0-G0-A	1	85 %	2246 W	127 mm	5 in	8 in	279.4 mm	203.2 mm	11 in	Enclosed	Chassis Mount	Adjustable Output I2C Interface PFC PMBus™ Remote On/Off Remote Sense Standby Output Universal Input	90 VAC 120 VDC	264 VAC 300 VDC	48 V	CB CE CSA UL	46.8 A	ITE (Commercial) Medical	60601-1 60950-1
ARTESYN / Advanced Energy IVS3-3W0-1W0-2E0-2V0-1Q0-1W0-4LL0-33-A	7	85 %	2120 W	127 mm	5 in	8 in	279.4 mm	203.2 mm	11 in	Enclosed	Chassis Mount	Adjustable Output I2C Interface PFC PMBus™ Remote On/Off Remote Sense Standby Output Universal Input	90 VAC 120 VDC	264 VAC 300 VDC	48 V	CB CE CSA UL	19.6 A	ITE (Commercial) Medical	60601-1 60950-1		12 V	24 V	7.5 A	4 A	10 A	5 V	8.5 A	48 V	60 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Enclosed AC DC Converters 7 Output 48V 5V 42V 24V 90 ~ 264 VAC, 120 ~ 300 VDC Input
