WR9QA3600LCPNAIMR6B

Active

GlobTek, Inc.

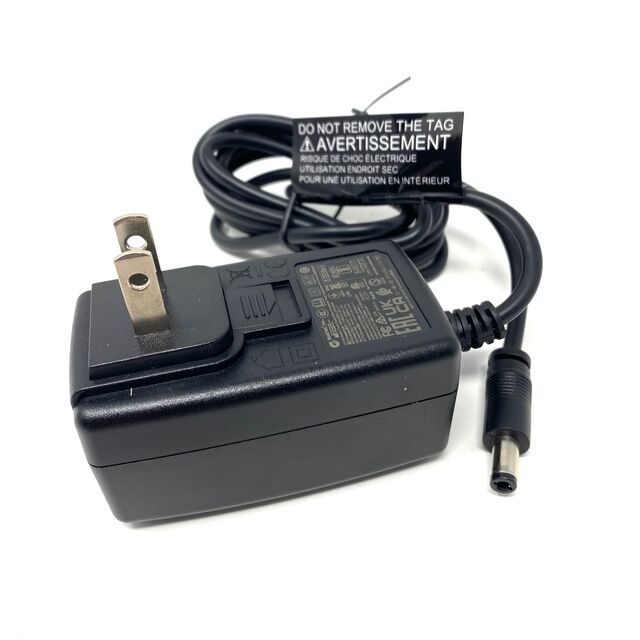

AC/DC WALL MOUNT ADAPTER 5V 18W

Search across all available documentation for this part.

Active

GlobTek, Inc.

AC/DC WALL MOUNT ADAPTER 5V 18W

Technical Specifications

Parameters and characteristics for this part

Specification	WR9QA3600LCPNAIMR6B

Applications	Household Appliances, ITE (Commercial), Medical
Approval Agency	UKRSepro, NOM, CCC, ETL, cETLus, LPS, BIS, EAC, UL, CB, S-Mark, VCCI, CE, PSE, RCM
Cord Length	1.2 m
Cord Length	47.2 in
Current - Output (Max) [Max]	3.6 A
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class II)
Input Connector	Multi-Blade
Input Type	Multi-Blade (Sold Separately)
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	-20 C
Output Connector	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm
Output Connector [x]	11 mm
Polarization	Positive Center
Power (Watts)	18 W
Region Utilized	International
Size / Dimension [x]	74 mm
Size / Dimension [x]	2.91 "
Size / Dimension [y]	43.5 mm
Size / Dimension [y]	1.71 in
Size / Dimension [z]	36.8 mm
Size / Dimension [z]	1.45 in
Standard Number	60601-1-2, 61558-1, 60335-1, 60601-1-11, 1310, 60950-1, 62368-1
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	5 V

Part	Current - Output (Max) [Max]	Approval Agency	Cord Length	Cord Length	Input Type	No Load Power Consumption [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Region Utilized	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Input Connector	Voltage - Output	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Output Connector	Form	Polarization	Standard Number	Output Connector [diameter]	Output Connector [x]
GlobTek, Inc. WR9QA3600USBC-CIMR6W	3.6 A	BIS CB CCC CE cETLus EAC ETL LPS NOM PSE RCM S-Mark UKRSepro UL VCCI	1.2 m	47.2 in	Multi-Blade (Sold Separately)	75 mW	90 VAC	264 VAC	International	18 W	36.8 mm	74 mm	2.91 "	43.5 mm	1.71 in	1.45 in	Multi-Blade	5 V	CoC Tier 2 Level VI	-20 C	40 °C	Household Appliances ITE (Commercial) Medical	USB C Receptacle	Wall Mount (Class II)
GlobTek, Inc. WR9QA3600LCPNAIMR6B	3.6 A	BIS CB CCC CE cETLus EAC ETL LPS NOM PSE RCM S-Mark UKRSepro UL VCCI	1.2 m	47.2 in	Multi-Blade (Sold Separately)	75 mW	90 VAC	264 VAC	International	18 W	36.8 mm	74 mm	2.91 "	43.5 mm	1.71 in	1.45 in	Multi-Blade	5 V	CoC Tier 2 Level VI	-20 C	40 °C	Household Appliances ITE (Commercial) Medical	Barrel Plug	Wall Mount (Class II)	Positive Center	1310 60335-1 60601-1-11 60601-1-2 60950-1 61558-1 62368-1	2.5 mm 5.5 mm	11 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5V 18 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
