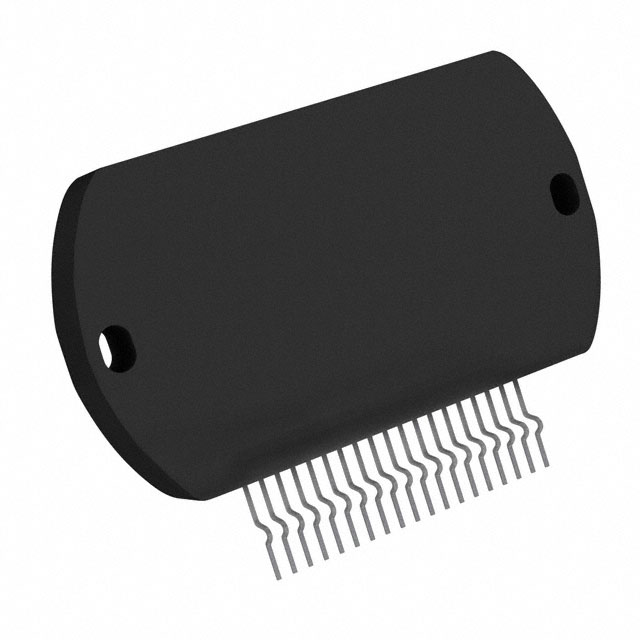

STK433-330N-E

Obsolete

ON Semiconductor

AUDIO AMP SPEAKER 3-CH STEREO 150W CLASS-AB 19-PIN(19+TAB)

Search across all available documentation for this part.

Obsolete

ON Semiconductor

AUDIO AMP SPEAKER 3-CH STEREO 150W CLASS-AB 19-PIN(19+TAB)

Technical Specifications

Parameters and characteristics for this part

Specification	STK433-330N-E

Max Output Power x Channels @ Load	150 W
Max Output Power x Channels @ Load [custom]	3
Max Output Power x Channels @ Load [custom]	6 Ohm
Mounting Type	Through Hole
Output Type	3-Channel
Package / Case	19-SIP
Supplier Device Package	19-SIP
Type	Class AB

Part	Output Type	Mounting Type	Package / Case	Max Output Power x Channels @ Load [custom]	Max Output Power x Channels @ Load	Type	Supplier Device Package	Max Output Power x Channels @ Load [custom]
ON Semiconductor STK433-840N-E	4-Channel (Quad)	Through Hole	23-SIP	4	6 Ohm 40 W	Class AB	23-SIP
ON Semiconductor STK433-240F-E
ON Semiconductor STK433-330N-E	3-Channel	Through Hole	19-SIP	3	150 W	Class AB	19-SIP	6 Ohm
ON Semiconductor STK433-070GN-E

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pin-to-pin compatible with 2ch class-AB Audio Power Amplifier

Miniature package

Allows the use of predesigned applications for standby and mute circuit
