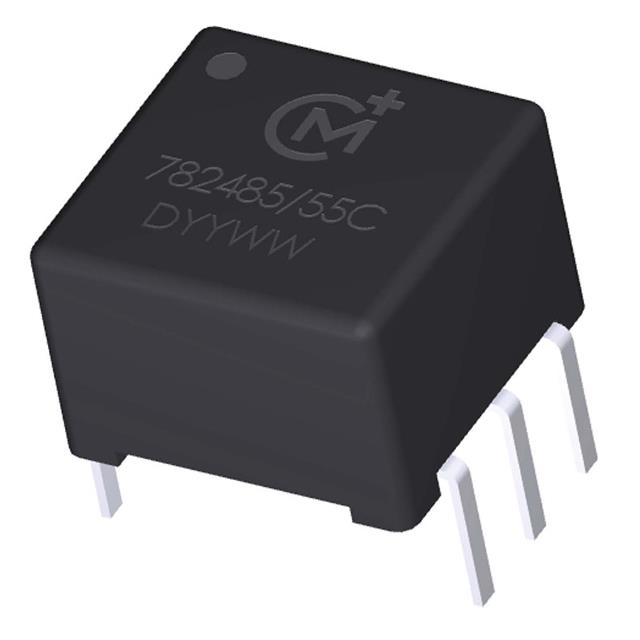

782485/55C

Active

Murata Power Solutions Inc.

TRANSFORMER 1CT:1.5CT 2500VRMS 9.14 X 9.77MM 6.35 X PIN THROUGH HOLE

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

TRANSFORMER 1CT:1.5CT 2500VRMS 9.14 X 9.77MM 6.35 X PIN THROUGH HOLE

Technical Specifications

Parameters and characteristics for this part

Specification	782485/55C

For Use With/Related Products	ADM2485
Height - Seated (Max) [Max] [z]	0.26 in
Height - Seated (Max) [Max] [z]	6.6 mm
Inductance	513 µH
Mounting Type	Through Hole
Size / Dimension [x]	9.14 mm
Size / Dimension [x]	0.36 "
Size / Dimension [y]	9.77 mm
Size / Dimension [y]	0.385 "
Weight	0.04 oz
Weight	1.14 g

Part	Mounting Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Inductance	For Use With/Related Products	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Weight	Weight
Murata Power Solutions Inc. 782485/55C	Through Hole	9.77 mm	9.14 mm	0.36 "	0.385 "	513 µH	ADM2485	0.26 in	6.6 mm	0.04 oz	1.14 g
Murata Power Solutions Inc. 782485/35C	Through Hole	9.77 mm	9.14 mm	0.36 "	0.385 "	234 µH	ADM2485	0.26 in	6.6 mm	0.04 oz	1.14 g

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TRANSFORMER 1CT:1.5CT 2500VRMS 9.14 X 9.77MM 6.35 X PIN THROUGH HOLE
