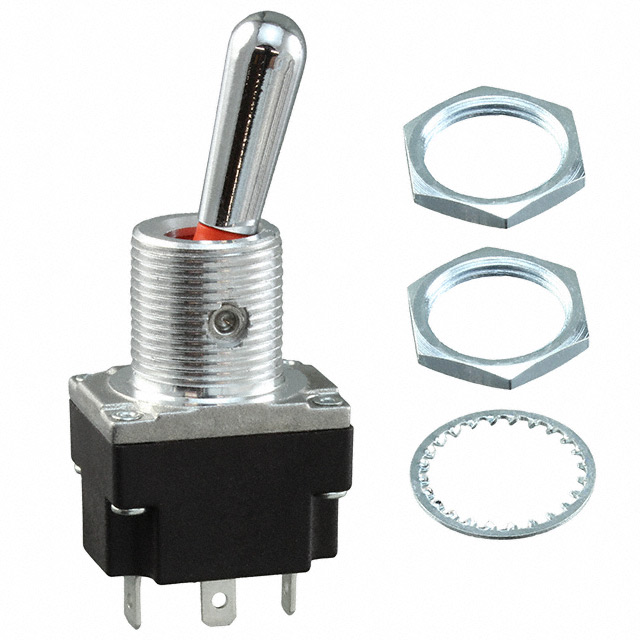

1MT1-1
ObsoleteHoneywell Sensing and Productivity Solutions
SWITCH TOGGLE SPDT 5A 28V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1MT1-1
ObsoleteHoneywell Sensing and Productivity Solutions
SWITCH TOGGLE SPDT 5A 28V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1MT1-1 |
|---|---|
| Actuator Length [x] | 16.87 mm |
| Actuator Type | Standard Round |
| Bushing Thread | 15/32-32 |
| Circuit | SPDT |
| Current Rating (Amps) | 5 A |
| Electrical Life | 60000 Cycles |
| Illumination | Non-Illuminated |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Panel Cutout Dimensions [diameter] | 12.45 mm |
| Switch Function | On-Off-On |
| Termination Style | 0.11 in |
| Termination Style | Quick Connect, Solder |
| Termination Style | 2.8 mm |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.23 | |
Description
General part information
1MT1 Series
Toggle Switch SPDT Panel Mount
