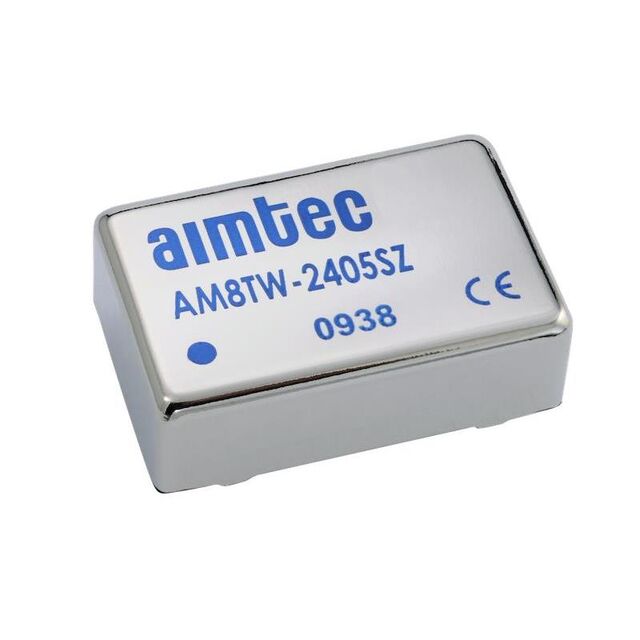

AM8TW-2412DH30Z
Activeaimtec
MODULE DC-DC 24V/48VIN 2-OUT -12V/12V -0.335A/0.335A 8W 8-PIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AM8TW-2412DH30Z
Activeaimtec
MODULE DC-DC 24V/48VIN 2-OUT -12V/12V -0.335A/0.335A 8W 8-PIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AM8TW-2412DH30Z |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, cURus |
| Current - Output (Max) [Max] | 335 mA |
| Current - Output (Max) [Min] | 335 mA |
| Efficiency | 85 % |
| Features | Remote On/Off |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 24-DIP Module |
| Power (Watts) | 8 W |
| Size / Dimension [x] | 31.8 mm |
| Size / Dimension [x] | 1.25 " |
| Size / Dimension [y] | 0.8 in |
| Size / Dimension [y] | 20.3 mm |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.2 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 70 V |
| Voltage - Input (Min) [Min] | 13 V |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 [Max] | 12 V |
| Voltage - Output 1 [Min] | -12 V |
| Voltage - Output 2 | -12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 46.20 | |
| 5 | $ 44.81 | |||
| 10 | $ 43.43 | |||
| 20 | $ 41.58 | |||
| 40 | $ 40.75 | |||
| 60 | $ 38.81 | |||
| 80 | $ 38.03 | |||
Description
General part information
AM8TW Series
Isolated Module DC DC Converter 2 Output -12 ~ 12V -12V 335mA, 335mA 13V - 70V Input
