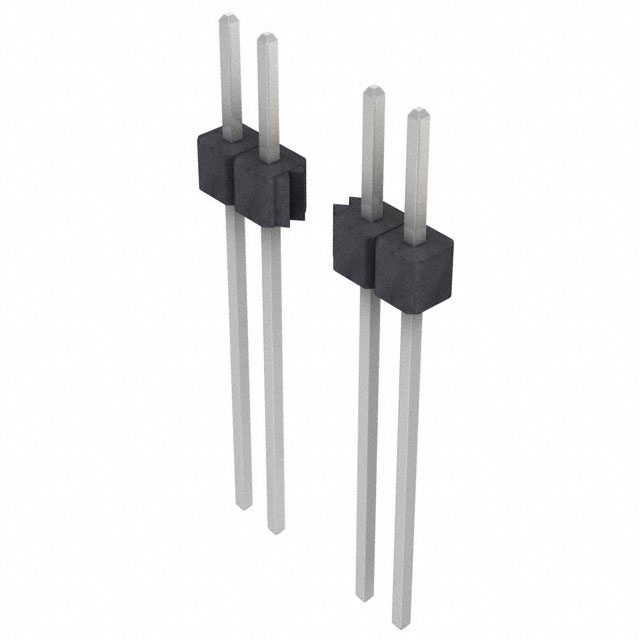

PTC27SAGN

Obsolete

Sullins Connector Solutions

CONN HEADER VERT 27POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PTC27SAGN

Obsolete

Sullins Connector Solutions

CONN HEADER VERT 27POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PTC27SAGN

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post [x]	18.29 mm
Contact Length - Post [x]	0.72 "
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polyester, Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	27
Number of Positions Loaded	All
Number of Rows	1
Overall Contact Length	1.05 in
Overall Contact Length	26.67 mm
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PTC27 Series

Part	Contact Length - Post [x]	Contact Length - Post [x]	Overall Contact Length	Overall Contact Length	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Insulation Material	Insulation Color	Fastening Type	Shrouding	Connector Type	Termination	Contact Shape	Current Rating (Amps)	Contact Material	Style	Contact Length - Mating [x]	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Material Flammability Rating	Contact Type	Number of Rows	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post	Contact Length - Post	Contact Length - Mating [x]
Sullins Connector Solutions PTC27SAGN	18.29 mm	0.72 "	1.05 in	26.67 mm	2.54 µm	100 µin	27	Polyester Thermoplastic	Black	Push-Pull	Unshrouded	Header	Solder	Square	3 A	Copper Alloy	Board to Board Cable	0.23 in	5.84 mm	2.54 çm	100 çin	Tin	UL94 V-0	Male Pin	1	All	0.1 in	2.54 mm	0.1 in	2.54 mm	Through Hole
Sullins Connector Solutions PTC27DAFN			0.95 in	24.13 mm	2.54 µm	100 µin	54	Polyester Thermoplastic	Black	Push-Pull	Unshrouded	Header	Solder	Square	3 A	Copper Alloy	Board to Board Cable	0.23 in	5.84 mm	2.54 çm	100 çin	Tin	UL94 V-0	Male Pin	2	All	0.1 in	2.54 mm	0.1 in	2.54 mm	Through Hole	2.54 mm	0.1 in	0.62 in	15.75 mm
Sullins Connector Solutions PTC27DBCN	8.13 mm	0.32 in			2.54 µm	100 µin	54	Polyester Thermoplastic	Black	Push-Pull	Unshrouded	Header	Solder	Square	3 A	Copper Alloy	Board to Board Cable	0.23 in	5.84 mm	2.54 çm	100 çin	Tin	UL94 V-0	Male Pin	2	All	0.1 in	2.54 mm	0.24 in	6.1 mm	Through Hole Right Angle	2.54 mm	0.1 in
Sullins Connector Solutions PTC27SFAN	3.05 mm	0.12 in	0.538 "	13.67 mm	2.54 µm	100 µin	27	Polyester Thermoplastic	Black	Push-Pull	Unshrouded	Header	Solder	Square	3 A	Copper Alloy	Board to Board Cable	0.318 "		2.54 çm	100 çin	Tin	UL94 V-0	Male Pin	1	All	0.1 in	2.54 mm	0.1 in	2.54 mm	Through Hole					8.08 mm
Sullins Connector Solutions PTC27SGBN					2.54 µm	100 µin	27	Polyester Thermoplastic	Black	Push-Pull	Unshrouded	Header	Solder	Square	3 A	Copper Alloy	Board to Board Cable	0.318 "		2.54 çm	100 çin	Tin	UL94 V-0	Male Pin	1	All	0.1 in	2.54 mm	0.14 in	3.56 mm	Through Hole Right Angle			0.22 in	5.58 mm	8.08 mm
Sullins Connector Solutions PTC27DAAN	3.05 mm	0.12 in	0.45 "	11.43 mm	2.54 µm	100 µin	54	Polyester Thermoplastic	Black	Push-Pull	Unshrouded	Header	Solder	Square	3 A	Copper Alloy	Board to Board Cable	0.23 in	5.84 mm	2.54 çm	100 çin	Tin	UL94 V-0	Male Pin	2	All	0.1 in	2.54 mm	0.1 in	2.54 mm	Through Hole	2.54 mm	0.1 in
Sullins Connector Solutions PTC27SBDN	10.67 mm	0.42 in			2.54 µm	100 µin	27	Polyester Thermoplastic	Black	Push-Pull	Unshrouded	Header	Solder	Square	3 A	Copper Alloy	Board to Board Cable	0.23 in	5.84 mm	2.54 çm	100 çin	Tin	UL94 V-0	Male Pin	1	All	0.1 in	2.54 mm	0.14 in	3.56 mm	Through Hole Right Angle
Sullins Connector Solutions PTC27SAFN			0.95 in	24.13 mm	2.54 µm	100 µin	27	Polyester Thermoplastic	Black	Push-Pull	Unshrouded	Header	Solder	Square	3 A	Copper Alloy	Board to Board Cable	0.23 in	5.84 mm	2.54 çm	100 çin	Tin	UL94 V-0	Male Pin	1	All	0.1 in	2.54 mm	0.1 in	2.54 mm	Through Hole			0.62 in	15.75 mm
Sullins Connector Solutions PTC27SAHN	20.83 mm	0.82 in	1.15 in	29.21 mm	2.54 µm	100 µin	27	Polyester Thermoplastic	Black	Push-Pull	Unshrouded	Header	Solder	Square	3 A	Copper Alloy	Board to Board Cable	0.23 in	5.84 mm	2.54 çm	100 çin	Tin	UL94 V-0	Male Pin	1	All	0.1 in	2.54 mm	0.1 in	2.54 mm	Through Hole
Sullins Connector Solutions PTC27DAGN	18.29 mm	0.72 "	1.05 in	26.67 mm	2.54 µm	100 µin	54	Polyester Thermoplastic	Black	Push-Pull	Unshrouded	Header	Solder	Square	3 A	Copper Alloy	Board to Board Cable	0.23 in	5.84 mm	2.54 çm	100 çin	Tin	UL94 V-0	Male Pin	2	All	0.1 in	2.54 mm	0.1 in	2.54 mm	Through Hole	2.54 mm	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PTC27 Series

Connector Header Through Hole 27 position 0.100" (2.54mm)
