0150140453

Active

Molex

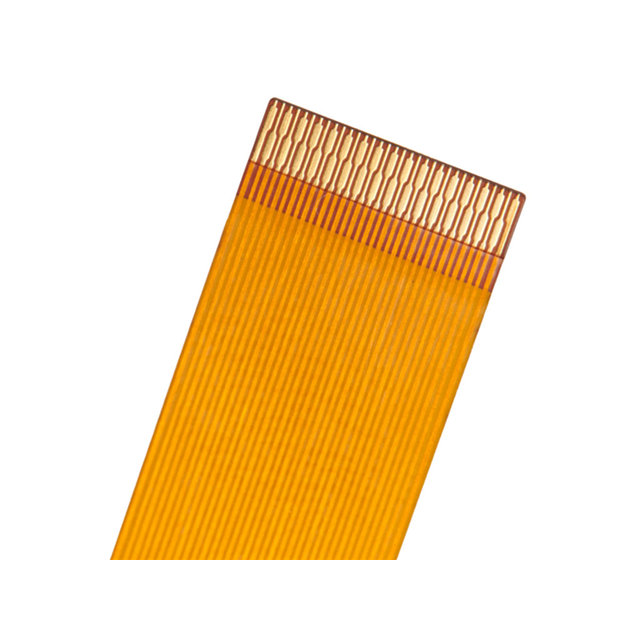

FFC / FPC JUMPER CABLES .25MM 53P .102M JUMPER TYPE A

Search across all available documentation for this part.

Active

Molex

FFC / FPC JUMPER CABLES .25MM 53P .102M JUMPER TYPE A

Technical Specifications

Parameters and characteristics for this part

Specification	0150140453

Cable Type	FPC, FFC
Length	4 in
Length	101.6 mm
Length - Exposed Ends [x]	0.085 in
Length - Exposed Ends [x]	2.16 mm
Number of Conductors	53
Pitch [x]	0.01 in
Pitch [x]	0.25 mm
Termination Style	Backers on Both Sides, Top on Both Sides

Part	Pitch [x]	Pitch [x]	Cable Type	Length [x]	Length [x]	Termination Style	Length	Length	Length - Exposed Ends [x]	Length - Exposed Ends [x]	Number of Conductors
Molex 0150140621	0.01 in	0.25 mm	FFC FPC	5.984 in	152 mm
Molex 0150140253	0.01 in	0.25 mm	FFC FPC			Backers on Both Sides Top on Both Sides	50.8 mm	2 in	0.085 in	2.16 mm	53
Molex 0150140241	0.01 in	0.25 mm	FFC FPC			Backers on Both Sides Top on Both Sides	50.8 mm	2 in	0.085 in	2.16 mm
Molex 0150140453	0.01 in	0.25 mm	FFC FPC			Backers on Both Sides Top on Both Sides	101.6 mm	4 in	0.085 in	2.16 mm	53
Molex 0150140633	0.01 in	0.25 mm	FFC FPC			Backers on Both Sides Top on Both Sides	152.4 mm	6 in	0.085 in	2.16 mm	33
Molex 0150140245	0.01 in	0.25 mm	FFC FPC			Backers on Both Sides Top on Both Sides	50.8 mm	2 in	0.085 in	2.16 mm	45
Molex 0150140413	0.01 in	0.25 mm	FFC FPC	2.008 "	51 mm
Molex 0150140643	0.01 in	0.25 mm	FFC FPC	5.984 in	152 mm
Molex 0150140251	0.01 in	0.25 mm	FFC FPC	2.008 "	51 mm
Molex 0150140645	0.01 in	0.25 mm	FFC FPC			Backers on Both Sides Top on Both Sides	152.4 mm	6 in	0.085 in	2.16 mm	45

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1000	$ 3.21
Sager	N/A	1000	$ 3.40
		2000	$ 2.89

General part information

53 Position FFC, FPC Cable 0.010" (0.25mm) 4.000" (101.60mm)
