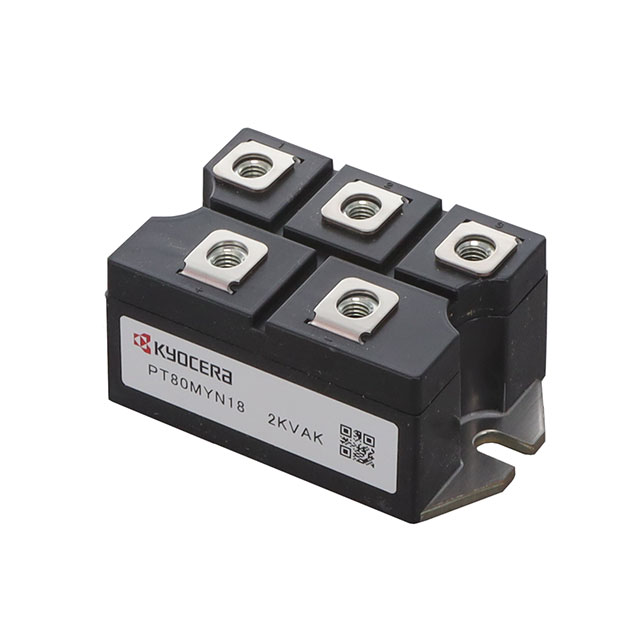

PT80MYN18

Active

Kyocera AVX

DIODE MODULE 3PHASE 1.8KV 80A

Search across all available documentation for this part.

Active

Kyocera AVX

DIODE MODULE 3PHASE 1.8KV 80A

Technical Specifications

Parameters and characteristics for this part

Specification	PT80MYN18

Current - Average Rectified (Io)	80 A
Current - Reverse Leakage @ Vr	5 mA
Diode Type	Three Phase
Mounting Type	Chassis Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Supplier Device Package	Module
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.52 V
Voltage - Peak Reverse (Max) [Max]	1.8 kV

Part	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Technology	Diode Type	Package / Case	Current - Reverse Leakage @ Vr	Voltage - Peak Reverse (Max)	Current - Average Rectified (Io)	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Voltage - Peak Reverse (Max) [Max]
Kyocera AVX PT80MYN16	1.52 V	Chassis Mount	Standard	Three Phase	Module	5 mA	1.6 kV	80 A	150 °C	-40 °C	Module
Kyocera AVX PT80MYN18	1.52 V	Chassis Mount	Standard	Three Phase	Module	5 mA		80 A	150 °C	-40 °C	Module	1.8 kV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 78.75

General part information

Bridge Rectifier Three Phase Standard 1.8 kV Chassis Mount Module
