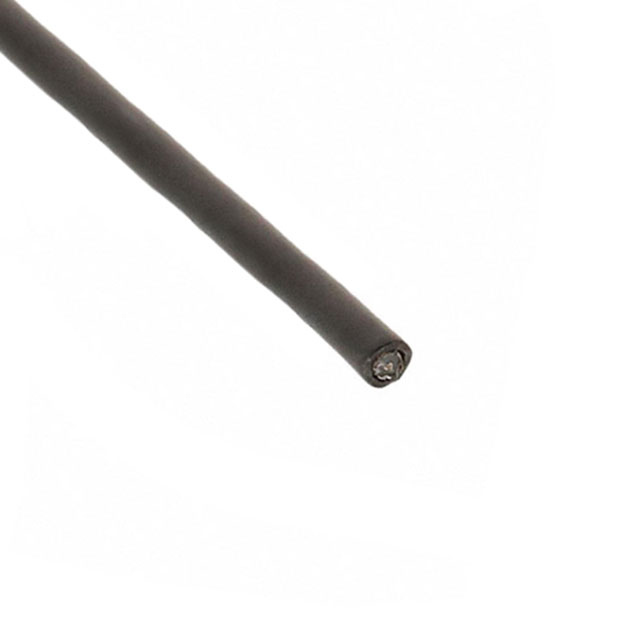

M4219 BK005

Active

ALPHA WIRE

CABLE COAXIAL RG58A 20AWG 100'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE COAXIAL RG58A 20AWG 100'

Technical Specifications

Parameters and characteristics for this part

Specification	M4219 BK005

Cable Group	RG-58A
Cable Type	Coaxial
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19
Conductor Strand [diameter]	0.0071 in
Dielectric Diameter [diameter]	0.117 in
Dielectric Diameter [diameter]	2.97 mm
Impedance	50 Ohms
Jacket (Insulation) Diameter [diameter]	5.16 mm
Jacket (Insulation) Diameter [diameter]	0.203 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length [x]	100 ft
Length [x]	30.48 m
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Shield Coverage	91 %
Shield Material	Copper, Tinned
Shield Type	Braid
Usage	Computer
Wire Gauge	21 AWG

Part	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Usage	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Length [x]	Length [x]	Conductor Material	Shield Material	Jacket (Insulation) Material	Impedance	Shield Type	Cable Group	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [diameter]	Shield Coverage	Jacket Color	Cable Type
ALPHA WIRE M4219 BK005	0.117 in	2.97 mm	Computer	-40 °C	75 ░C	21 AWG	100 ft	30.48 m	Copper Tinned	Copper Tinned	Poly-Vinyl Chloride (PVC)	50 Ohms	Braid	RG-58A	5.16 mm	0.203 in	19	0.0071 in	91 %	Black	Coaxial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Coaxial Cable 21 AWG RG-58A 100.0' (30.48m) 50 Ohms
