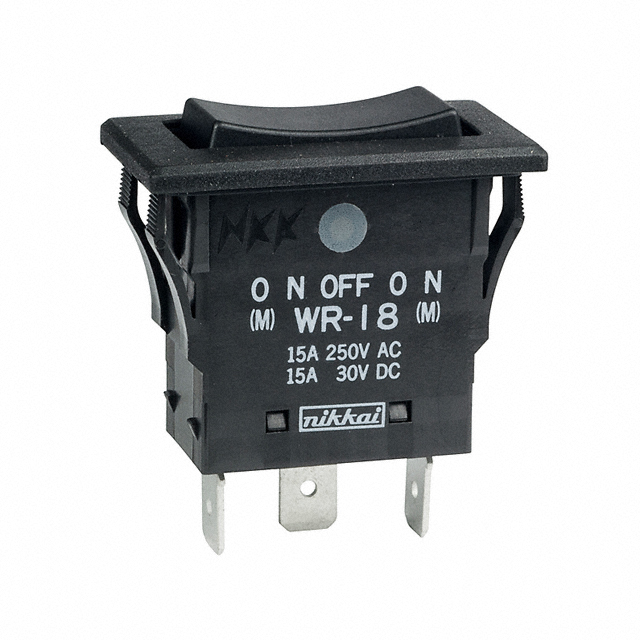

WR18AFN

Active

NKK Switches

ENVIRONMENTALLY SEALED ROCKER

Search across all available documentation for this part.

Active

NKK Switches

ENVIRONMENTALLY SEALED ROCKER

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating - AC	Features	Mechanical Life	Actuator Type	Voltage Rating - DC	Ingress Protection	Color - Actuator/Cap	Circuit	Termination Style	Switch Function	Electrical Life	Approval Agency	Actuator Marking	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Mounting Type
NKK Switches WR18AF/V	125 V	Epoxy Sealed Terminals	30000 Steps	Concave (Curved)	30 V	IP67 - Dust Tight Waterproof	Black	SPDT	Quick Connect - 0.250" (6.3mm)	Mom-Off-Mom	10000 Cycles	EN UL	No Marking	-25 °C	85 °C	15 A	Panel Mount Snap-In
NKK Switches WR18AF/CUL	125 V	Epoxy Sealed Terminals	30000 Steps	Concave (Curved)	30 V	IP67 - Dust Tight Waterproof	Black	SPDT	Quick Connect - 0.250" (6.3mm)	Mom-Off-Mom	10000 Cycles	EN UL	No Marking	-25 °C	85 °C	15 A	Panel Mount Snap-In
NKK Switches WR18AFN	125 V	Epoxy Sealed Terminals	30000 Steps	Concave (Curved)	30 V	IP67 - Dust Tight Waterproof	Black	SPDT	Quick Connect - 0.250" (6.3mm)	Mom-Off-Mom	10000 Cycles	EN UL	No Marking	-25 °C	85 °C	15 A	Panel Mount Snap-In
NKK Switches WR18AF/UCV	125 V	Epoxy Sealed Terminals	30000 Steps	Concave (Curved)	30 V	IP67 - Dust Tight Waterproof	Black	SPDT	Quick Connect - 0.250" (6.3mm)	Mom-Off-Mom	10000 Cycles	EN UL	No Marking	-25 °C	85 °C	15 A	Panel Mount Snap-In
NKK Switches WR18AFN/V	125 V	Epoxy Sealed Terminals	30000 Steps	Concave (Curved)	30 V	IP67 - Dust Tight Waterproof	Black	SPDT	Quick Connect - 0.250" (6.3mm)	Mom-Off-Mom	10000 Cycles	EN UL	No Marking	-25 °C	85 °C	15 A	Panel Mount Snap-In

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPDT 15A (AC/DC) 125 V Panel Mount, Snap-In
