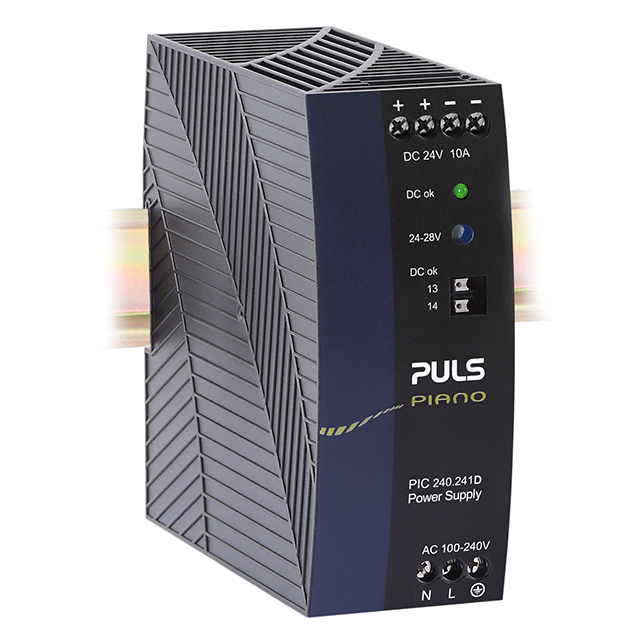

PIC240.241D

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 240W

Search across all available documentation for this part.

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 240W

Technical Specifications

Parameters and characteristics for this part

Specification	PIC240.241D

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	90 VAC
Applications	ITE (Commercial)
Approval Agency	IEC, EAC, UL
Current - Output (Max) [Max]	10 A
Efficiency	95.2 %
Features	Adjustable Output, Load Sharing, Universal Input, PFC
Input Type	AC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	240 W
Size / Dimension [x]	4.88 "
Size / Dimension [x]	124 mm
Size / Dimension [y]	49 mm
Size / Dimension [y]	1.93 in
Size / Dimension [z]	4.88 "
Size / Dimension [z]	124 mm
Standard Number	62368-1, 61010-2-201
Voltage - Isolation	500 V
Voltage - Output 1	24 V

Part	Efficiency	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Standard Number	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Power (Watts)	Voltage - Isolation	Input Type	Number of Outputs	Applications	Current - Output (Max) [Max]	Approval Agency	Features	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]
PULS, LP PIC240.241D	95.2 %	90 VAC	264 VAC	61010-2-201 62368-1	4.88 "	124 mm	49 mm	4.88 "	124 mm	1.93 in	240 W	500 V	AC	1	ITE (Commercial)	10 A	EAC IEC UL	Adjustable Output Load Sharing PFC Universal Input	24 V	70 °C	0 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 238.50

General part information

AC/DC DIN RAIL SUPPLY 24V 240W
