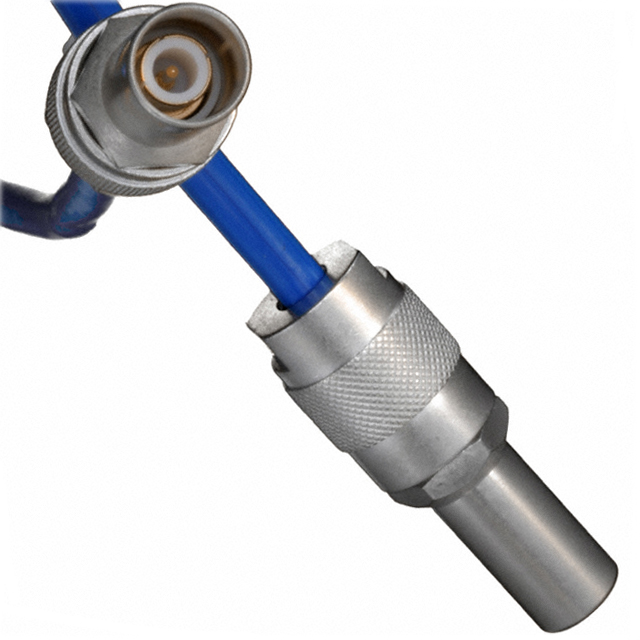

PTWM-24-78

Active

Cinch Connectivity Solutions Trompeter

CBL ASSY TWINAX PLUG TO PLUG 24"

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Trompeter

CBL ASSY TWINAX PLUG TO PLUG 24"

Technical Specifications

Parameters and characteristics for this part

Specification	PTWM-24-78

1st Connector	Twinax Subminiature Patch Plug
1st Contact Gender	Male
2nd Connector	Twinax Subminiature Patch Plug
2nd Contact Gender	Male
Cable Type	Twinaxial
Color	Blue
Length	24 "
Length	609.6 mm
Overall Impedance	78 Ohms
Style	Twinax to Twinax

Part	1st Contact Gender	Length	Length	Style	1st Connector	2nd Contact Gender	Overall Impedance	2nd Connector	Cable Type	Length [x]	Length [x]	Color	Frequency - Max [Max]
Cinch Connectivity Solutions Trompeter PTWX-24-124	Male	24 "	609.6 mm	Twinax to Twinax	Twinax Patch Plug	Male	124 Ohms	TRB Plug	Twinaxial
Cinch Connectivity Solutions Trompeter PTWY-24-124	Male	24 "	609.6 mm	TRB to TRB	TRB Plug	Male	124 Ohms	TRB Plug	Twinaxial
Cinch Connectivity Solutions Trompeter PTWY-36-78	Male	36 in	91.44 cm	TRB to TRB	TRB Plug	Male	78 Ohms	TRB Plug	Twinaxial
Cinch Connectivity Solutions Trompeter PTWY-36-124	Male	36 in	91.44 cm	TRB to TRB	TRB Plug	Male	124 Ohms	TRB Plug	Twinaxial
Cinch Connectivity Solutions Trompeter PTWY-18-78	Male			TRB to TRB	TRB Plug	Male	78 Ohms	TRB Plug	Twinaxial	457.2 mm	457.2 mm
Cinch Connectivity Solutions Trompeter PTWM-24-78	Male	24 "	609.6 mm	Twinax to Twinax	Twinax Subminiature Patch Plug	Male	78 Ohms	Twinax Subminiature Patch Plug	Twinaxial			Blue
Cinch Connectivity Solutions Trompeter PTWY-24-78	Male	24 "	609.6 mm	TRB to TRB	TRB Plug	Male	78 Ohms	TRB Plug	Twinaxial
Cinch Connectivity Solutions Trompeter PTWX-36-124	Male	36 in	91.44 cm	Twinax to Twinax	Twinax Patch Plug	Male	124 Ohms	TRB Plug	Twinaxial
Cinch Connectivity Solutions Trompeter PTWX-24-78	Male	24 "	609.6 mm	Twinax to Twinax	Twinax Patch Plug	Male	78 Ohms	TRB Plug	Twinaxial
Cinch Connectivity Solutions Trompeter PTW-18-78	Male			Twinax to Twinax	Twinax Patch Plug	Male	78 Ohms	Twinax Patch Plug	Twinaxial	457.2 mm	457.2 mm	Blue	500 MHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	10	$ 285.08

General part information

Cable Assembly Coaxial Twinax to Twinax Twinaxial 24.00" (609.60mm)

Technical documentation and resources

No documents available
