66AK2H12DXAAWA24

Active

Texas Instruments

HIGH PERFORMANCE MULTICORE DSP+ARM - 4X ARM A15 CORES, 8X C66X DSP CORES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsThermal Design Guide for DSP and Arm Application Processors (Rev. B)KeyStone II Architecture Universal Serial Bus 3.0 (USB 3.0) (Rev. A)+66

66AK2H12DXAAWA24

Active

Texas Instruments

HIGH PERFORMANCE MULTICORE DSP+ARM - 4X ARM A15 CORES, 8X C66X DSP CORES

Deep-Dive with AI

DocumentsThermal Design Guide for DSP and Arm Application Processors (Rev. B)KeyStone II Architecture Universal Serial Bus 3.0 (USB 3.0) (Rev. A)+66

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	66AK2H12DXAAWA24

Clock Rate	1.2 GHz, 1.4 GHz
Interface	EBI/EMI, UART/USART, USB 3.0, Ethernet, I2C, SPI, Serial RapidIO, DMA
Mounting Type	Surface Mount
Non-Volatile Memory	384 kB
On-Chip RAM	12.75 MB
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C

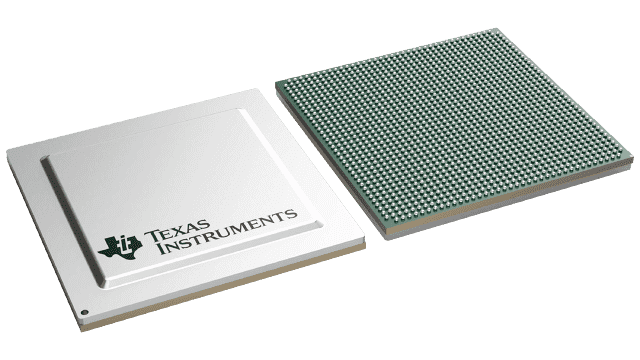

Package / Case	FCBGA, 1517-BBGA
Supplier Device Package	1517-FCBGA (40x40)
Type	DSP+ARM®
Voltage - Core	Variable
Voltage - I/O	1.5 V, 1.35 V, 3.3 V, 1 V, 1.8 V, 0.85 V

66AK2H12 Series

High performance multicore DSP+Arm - 4x Arm A15 cores, 8x C66x DSP cores

Part	Mounting Type	Supplier Device Package	Non-Volatile Memory	Voltage - I/O	Type	Operating Temperature [Min]	Operating Temperature [Max]	Interface	Clock Rate	Voltage - Core	Package / Case	On-Chip RAM
Texas Instruments 66AK2H12DAAWA24	Surface Mount	1517-FCBGA (40x40)	384 kB	0.85 V 1 V 1.35 V 1.5 V 1.8 V 3.3 V	DSP+ARM®	-40 °C	100 °C	DMA EBI/EMI Ethernet I2C Serial RapidIO SPI UART/USART USB 3.0	1.2 GHz 1.4 GHz	Variable	1517-BBGA FCBGA	12.75 MB
Texas Instruments 66AK2H12DAAWA2	Surface Mount	1517-FCBGA (40x40)	384 kB	0.85 V 1 V 1.35 V 1.5 V 1.8 V 3.3 V	DSP+ARM®	-40 °C	100 °C	DMA EBI/EMI Ethernet I2C Serial RapidIO SPI UART/USART USB 3.0	1.2 GHz	Variable	1517-BBGA FCBGA	12.75 MB
Texas Instruments 66AK2H12DAAW2	Surface Mount	1517-FCBGA (40x40)	384 kB	0.85 V 1 V 1.35 V 1.5 V 1.8 V 3.3 V	DSP+ARM®	0 °C	85 °C	DMA EBI/EMI Ethernet I2C Serial RapidIO SPI UART/USART USB 3.0	1.2 GHz	Variable	1517-BBGA FCBGA	12.75 MB
Texas Instruments 66AK2H12DXAAWA24	Surface Mount	1517-FCBGA (40x40)	384 kB	0.85 V 1 V 1.35 V 1.5 V 1.8 V 3.3 V	DSP+ARM®	-40 °C	100 °C	DMA EBI/EMI Ethernet I2C Serial RapidIO SPI UART/USART USB 3.0	1.2 GHz 1.4 GHz	Variable	1517-BBGA FCBGA	12.75 MB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	21	$ 922.25
Texas Instruments	JEDEC TRAY (5+1)	1	$ 834.03
		100	$ 754.94
		250	$ 733.37
		1000	$ 718.99

Description

General part information

66AK2H12 Series

The 66AK2Hxx platform combines the quad ARM Cortex-A15 processor with up to eight TMS320C66x high-performance DSPs using the KeyStone II architecture. The 66AK2H14/12/06 device provides up to 5.6 GHz of ARM and 9.6 GHz of DSP processing coupled with security, packet processing, and Ethernet switching at lower power than multichip solutions. The 66AK2H14/12/06 device is optimal for embedded infrastructure applications like cloud computing, media processing, high-performance computing, transcoding, security, gaming, analytics, and virtual desktop.

The C66x core combines fixed-point and floating-point computational capability in the processor without sacrificing speed, size, or power consumption. The raw computational performance is 38.4 GMACS/core and 19.2 Gflops/core (@ 1.2 GHz operating frequency). The C66x is also 100% backward compatible with software for C64x+ devices. The C66x core incorporates 90 new instructions targeted for floating point (FPi) and vector math oriented (VPi) processing.

The 66AK2H14/12/06 device has a complete set of development tools that includes: a C compiler, an assembly optimizer to simplify programming and scheduling, and a Windows®debugger interface for visibility into source code execution.
