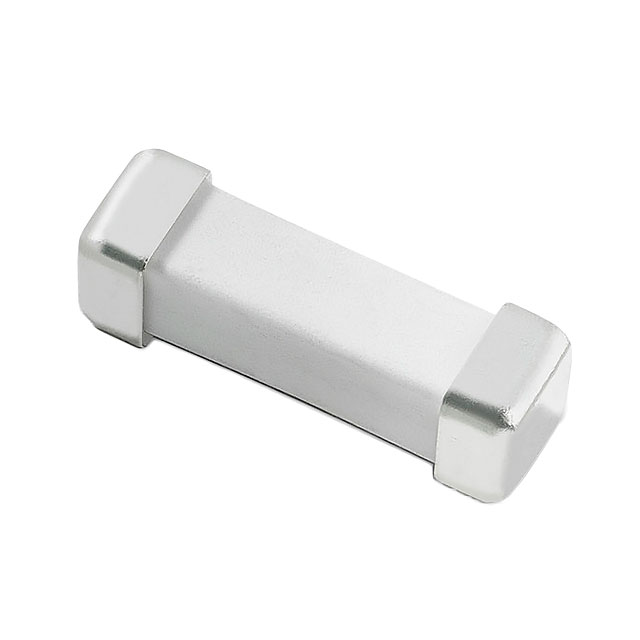

0443001.DRLC

Active

Littelfuse/Commercial Vehicle Products

FUSE BOARD MOUNT 1A 280VAC 2SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet KTL_SU05024_14002_9_23_14 +1

0443001.DRLC

Active

Littelfuse/Commercial Vehicle Products

FUSE BOARD MOUNT 1A 280VAC 2SMD

Deep-Dive with AI

DocumentsDatasheet KTL_SU05024_14002_9_23_14 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0443001.DRLC

Breaking Capacity @ Rated Voltage	50 A
Current Rating (Amps)	1 A
DC Cold Resistance	0.18 Ohms
Fuse Type	Board Mount
Melting I²t	10.17
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	2-SMD, Square End Block
Response Time	Slow Blow
Size / Dimension [x]	0.398 in
Size / Dimension [x]	10.1 mm
Size / Dimension [y]	0.123 in
Size / Dimension [y]	3.12 mm
Size / Dimension [z]	3.12 mm
Size / Dimension [z]	0.123 "
Voltage Rating - AC	280 V

0443001 Series

FUSE 280V TL NANO2 ROHS 1A

Part	Melting I²t	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Fuse Type	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	DC Cold Resistance	Current Rating (Amps)	Breaking Capacity @ Rated Voltage	Response Time	Mounting Type	Voltage Rating - AC
Littelfuse/Commercial Vehicle Products 0443001.DRLC	10.17	0.398 in	3.12 mm	10.1 mm	0.123 in	3.12 mm	0.123 "	Board Mount	-55 °C	125 °C	2-SMD Square End Block	0.18 Ohms	1 A	50 A	Slow Blow	Surface Mount	280 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.84
		5	$ 1.54
		10	$ 1.42
		50	$ 1.18
		100	$ 1.09
		250	$ 0.98
		500	$ 0.91
	Digi-Reel®	1	$ 1.84
		5	$ 1.54
		10	$ 1.42
		50	$ 1.18
		100	$ 1.09
		250	$ 0.98
		500	$ 0.91
	Tape & Reel (TR)	1500	$ 0.80
		3000	$ 0.77
Newark	Each (Supplied on Full Reel)	1000	$ 1.00
		2000	$ 0.94
		4000	$ 0.85
		6000	$ 0.82
		10000	$ 0.79

Description

General part information

0443001 Series

The 443LC Series NANO²® fuse is a 4012 footprint, Slo Blo surface mount fuse which provides overcurrent protection for applications with working voltage up to 277VAC. Its high I2t provides superior surge withstand capability for its small footprint. This can therefore be used on applications where board space is a limitation, without worrying of any nuisance failures due to surge/pulse current and voltages in the application, or where larger sized solutions are previously being used.
