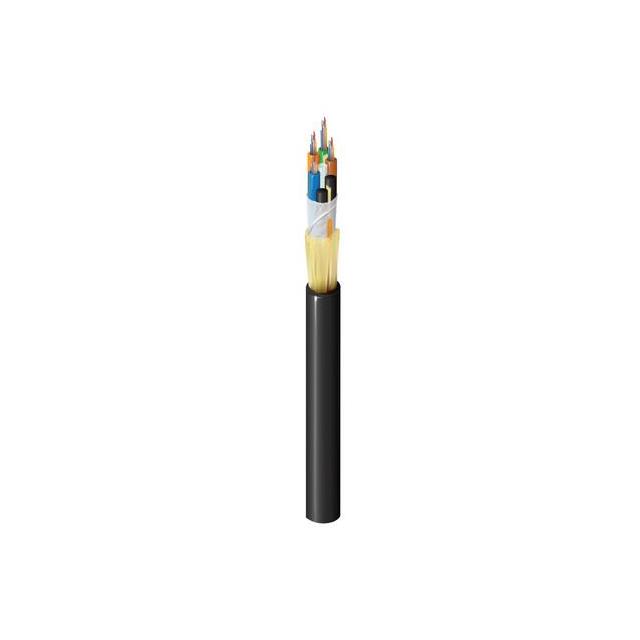

FSSL048ND

Active

Belden Inc.

CBL FIBER OPTIC

Search across all available documentation for this part.

Active

Belden Inc.

CBL FIBER OPTIC

Technical Specifications

Parameters and characteristics for this part

Specification	FSSL048ND

Cladding Diameter [diameter]	125 µm
Core Diameter [diameter]	9 µm
Features	48 Fibers
Features	Rip Cord
Jacket (Insulation) Diameter [diameter]	9.8 mm
Jacket (Insulation) Diameter [diameter]	0.386 in
Jacket (Insulation) Material	Polyethylene (PE)
Jacket Color	Black
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Style	Multiple Fibers
Tensile Strength	81.6 kg
Type	Singlemode

Part	Tensile Strength	Operating Temperature [Min]	Operating Temperature [Max]	Core Diameter [diameter]	Style	Jacket (Insulation) Material	Features	Features	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Type	Cladding Diameter [diameter]
Belden Inc. FSSL048ND	81.6 kg	-40 °C	70 °C	9 µm	Multiple Fibers	Polyethylene (PE)	48 Fibers	Rip Cord	Black	9.8 mm	0.386 in	Singlemode	125 µm
Belden Inc. FSSL0486D

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1640	$ 0.89

General part information

Fiber Optic Cable Black Singlemode 125µm
