SP6213EC5-3-3/TR

Obsolete

MaxLinear, Inc.

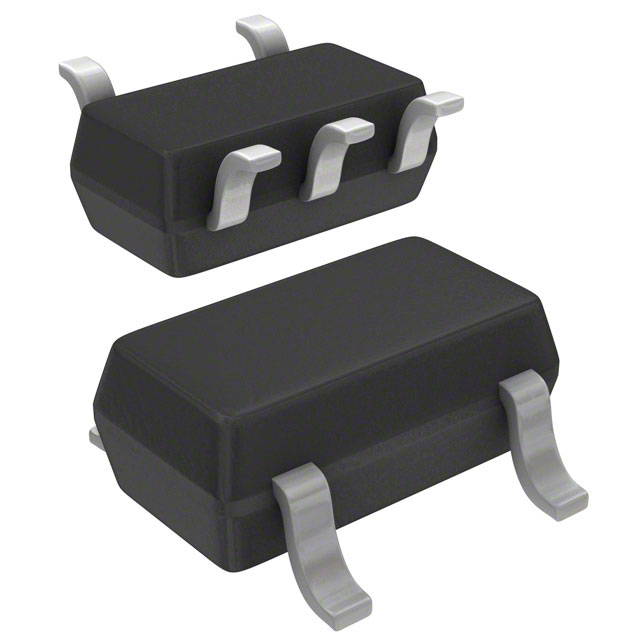

IC REG LINEAR 3.3V 100MA SC-70-5

Search across all available documentation for this part.

Obsolete

MaxLinear, Inc.

IC REG LINEAR 3.3V 100MA SC-70-5

Technical Specifications

Parameters and characteristics for this part

Part	Number of Regulators	Package / Case	Current - Output	Current - Quiescent (Iq)	Output Type	Supplier Device Package	Voltage - Output (Min/Fixed)	Current - Supply (Max) [Max]	Output Configuration	Voltage - Input (Max) [Max]	Voltage Dropout (Max) [Max]	Mounting Type	Control Features	PSRR [Min]	PSRR [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Protection Features
MaxLinear, Inc. SP6213EC5-3-3/TR	1	5-TSSOP SC-70-5 SOT-353	100 mA	125 µA	1.81 mOhm	SC-70-5	3.3 V	250 µA	Positive	6 V	0.5 V	Surface Mount	Enable	74 dB	40 dB	125 °C	-40 °C
MaxLinear, Inc. SP6213EC5-L-2-85	1	5-TSSOP SC-70-5 SOT-353	100 mA	125 µA	1.81 mOhm	SC-70-5	2.85 V	250 µA	Positive	6 V	0.5 V	Surface Mount	Enable	40 dB	70 dB	125 °C	-40 °C	Over Current Over Temperature
MaxLinear, Inc. SP6213EC5-L-2-5	1	5-TSSOP SC-70-5 SOT-353	100 mA	125 µA	1.81 mOhm	SC-70-5	2.5 V	250 µA	Positive	6 V		Surface Mount	Enable	40 dB	70 dB	125 °C	-40 °C	Over Current Over Temperature
MaxLinear, Inc. SP6213EC5-L-3-0	1	5-TSSOP SC-70-5 SOT-353	100 mA	125 µA	1.81 mOhm	SC-70-5		250 µA	Positive	6 V	0.5 V	Surface Mount	Enable	40 dB	70 dB	125 °C	-40 °C	Over Current Over Temperature

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SC-70-5
