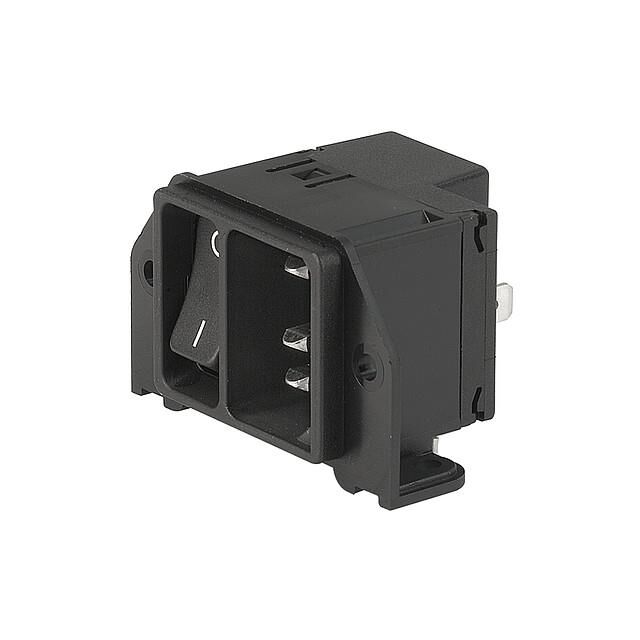

DC21.0021.1111.21

Active

SCHURTER Inc.

CONNECTOR: AC SUPPLY; SOCKET; MALE; 10A; C14 (E); DC21; IEC 60320

Search across all available documentation for this part.

Active

SCHURTER Inc.

CONNECTOR: AC SUPPLY; SOCKET; MALE; 10A; C14 (E); DC21; IEC 60320

Technical Specifications

Parameters and characteristics for this part

Specification	DC21.0021.1111.21

Accomodates a Fuse	True
Approval Agency	CCC, ENEC, cULus
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Filter Type	Unfiltered - Commercial
Fuse Holder, Drawer	Fuse Holder, Twin Fused
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	34 mm
Panel Cutout Dimensions [y]	27.5 mm
Switch Features	Switch On-Off
Termination	0.189 ", 4.8 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Current Rating - Appliance Inlet	Mounting Type	Termination	Termination	Material Flammability Rating	Fuse Holder, Drawer	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Ingress Protection	Connector Type	Connector Style	Switch Features	Accomodates a Fuse	Filter Type	Approval Agency	Voltage Rating - Appliance Inlet
SCHURTER Inc. DC21.0021.1111.21	10 A	Flange Panel Mount	0.189 " 4.8 mm	Quick Connect	UL94 V-0	Fuse Holder Twin Fused	34 mm	27.5 mm	IP40	Receptacle Male Blades - Module	IEC 320-C14	Switch On-Off		Unfiltered - Commercial	CCC cULus ENEC	250 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Flange
