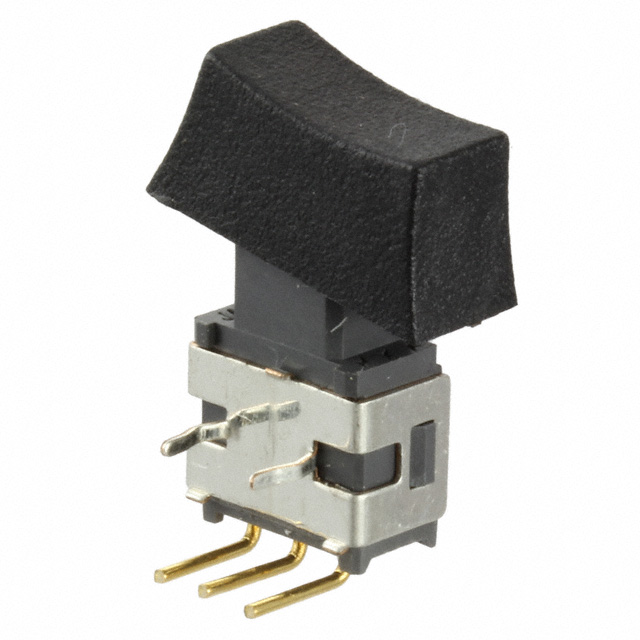

A12K1H-DA

Active

NKK Switches

ROCKER SWITCH, SEALED, SUBMINIATURE, ON-NONE-ON, SPDT, NON ILLUMINATED, THROUGH HOLE, RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

A12K1H-DA

Active

NKK Switches

ROCKER SWITCH, SEALED, SUBMINIATURE, ON-NONE-ON, SPDT, NON ILLUMINATED, THROUGH HOLE, RIGHT ANGLE

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A12K1H-DA

Actuator Marking	No Marking
Actuator Type	Concave (Curved)
Approval Agency	CSA, UL
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Process Sealed
Mechanical Life	100000 Cycles
Mounting Type	Through Hole, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

A12K1 Series

Part	Switch Function	Actuator Type	Mechanical Life	Voltage Rating - AC	Actuator Marking	Approval Agency	Current Rating (Amps)	Features	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Electrical Life	Termination Style	Circuit	Color - Actuator/Cap	Voltage Rating - DC
NKK Switches A12K1P-DA	On-On	Concave (Curved)	100000 Cycles	28 V	No Marking	CSA UL	0.4 VA	Process Sealed	-30 ░C	85 °C	Through Hole	50000 Cycles	PC Pin	SPDT	Black	28 V
NKK Switches A12K1B	On-On	Actuator Arm Cap Required	100000 Cycles	28 V	No Marking	CSA UL	0.4 VA	Process Sealed	-30 ░C	85 °C	Through Hole	50000 Cycles	PC Pin	SPDT		28 V
NKK Switches A12K1B1-DA	On-On	Concave (Curved)	100000 Cycles	28 V	No Marking	CSA UL	0.4 VA	Process Sealed	-30 ░C	85 °C	Through Hole	50000 Cycles	PC Pin	SPDT	Black	28 V
NKK Switches A12K1H-DA	On-On	Concave (Curved)	100000 Cycles	28 V	No Marking	CSA UL	0.4 VA	Process Sealed	-30 ░C	85 °C	Through Hole Right Angle	50000 Cycles	PC Pin	SPDT	Black	28 V
NKK Switches A12K1B-EA	On-On	Concave (Curved)	100000 Cycles	28 V	No Marking	CSA UL	0.4 VA	Process Sealed	-30 ░C	85 °C	Through Hole	50000 Cycles	PC Pin	SPDT	Black	28 V
NKK Switches A12K1W	On-On	Actuator Arm Cap Required	100000 Cycles	28 V	No Marking	CSA UL	0.4 VA	Process Sealed	-30 ░C	85 °C	Through Hole	50000 Cycles	Wire Wrap	SPDT		28 V
NKK Switches A12K1V	On-On	Actuator Arm Cap Required	100000 Cycles	28 V	No Marking	CSA UL	0.4 VA	Process Sealed	-30 ░C	85 °C	Right Angle Through Hole Vertical	50000 Cycles	PC Pin	SPDT		28 V
NKK Switches A12K1V1-DA	On-On	Concave (Curved)	100000 Cycles	28 V	No Marking	CSA UL	0.4 VA	Process Sealed	-30 ░C	85 °C	Right Angle Through Hole Vertical	50000 Cycles	PC Pin	SPDT	Black	28 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 7.01
		10	$ 6.31
		25	$ 5.99
		40	$ 5.74
		80	$ 5.55
		230	$ 5.26
		440	$ 4.82
		945	$ 4.60
Newark	Each	1	$ 13.43
		5	$ 12.53
		10	$ 11.52
		25	$ 10.52
		50	$ 9.51
		100	$ 8.40
		250	$ 7.55

Description

General part information

A12K1 Series

Rocker Switch SPDT 0.4VA (AC/DC) 28 V Through Hole, Right Angle

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet
