RCLAMP2402B.TCT
UnknownSemtech Corporation
ESD PROTECTION DEVICE, 55 V, SC-75, 3 PINS, 24 V, RAILCLAMP SERIES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsTechnical Data Sheet EN
RCLAMP2402B.TCT
UnknownSemtech Corporation
ESD PROTECTION DEVICE, 55 V, SC-75, 3 PINS, 24 V, RAILCLAMP SERIES
Deep-Dive with AI
DocumentsTechnical Data Sheet EN
Technical Specifications
Parameters and characteristics for this part
| Specification | RCLAMP2402B.TCT |
|---|---|
| Applications | HDMI |
| Capacitance @ Frequency | 0.6 pF |
| Current - Peak Pulse (10/1000µs) | 4 A |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -55 °C |

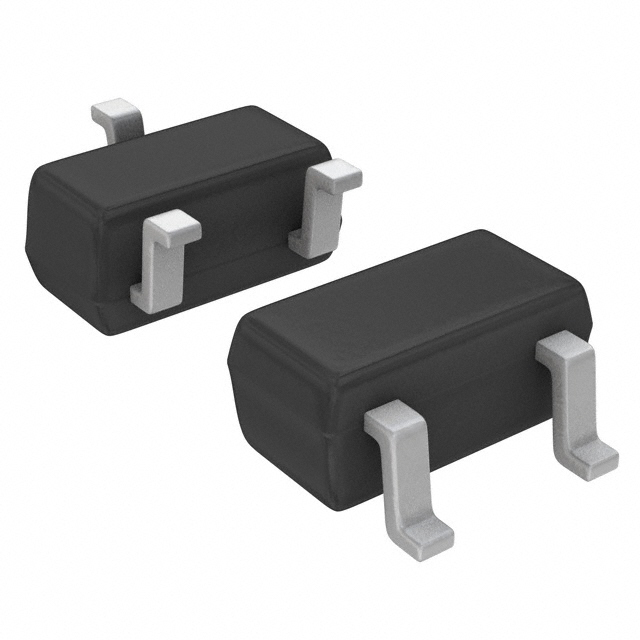

| Package / Case | SC-75, SOT-416 |
| Power - Peak Pulse | 200 W |
| Power Line Protection | False |
| Supplier Device Package | SC-75 (SOT523) |
| Type | Zener |
| Unidirectional Channels | 2 |
| Voltage - Breakdown (Min) [Min] | 26.7 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 55 V |
| Voltage - Reverse Standoff (Typ) | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
RCLAMP2402 Series
Transient protection for high-speed data lines toIEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)IEC 61000-4-4 (EFT) 40A (5/50ns)
IEC 61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
IEC 61000-4-4 (EFT) 40A (5/50ns)
