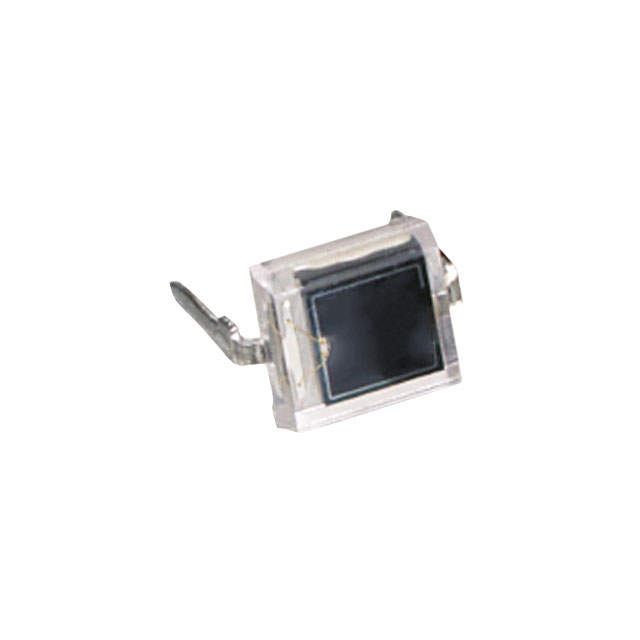

VTP8551H
ObsoleteExcelitas Technologies
SENSOR PHOTODIODE 925NM 2DIP MOD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VTP8551H
ObsoleteExcelitas Technologies
SENSOR PHOTODIODE 925NM 2DIP MOD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VTP8551H |
|---|---|
| Active Area | 7.45 mm² |
| Current - Dark (Typ) | 30 nA |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 2-DIP Module |
| Responsivity @ nm | 0.55 A/W |
| Responsivity @ nm [custom] | 925 nm |
| Spectral Range [Max] | 1150 nm |
| Spectral Range [Min] | 400 nm |
| Viewing Angle | 100 ° |
| Voltage - DC Reverse (Vr) (Max) [Max] | 140 V |
| Wavelength | 925 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
VTP8551 Series
Photodiode 925nm 100° 2-DIP Module
