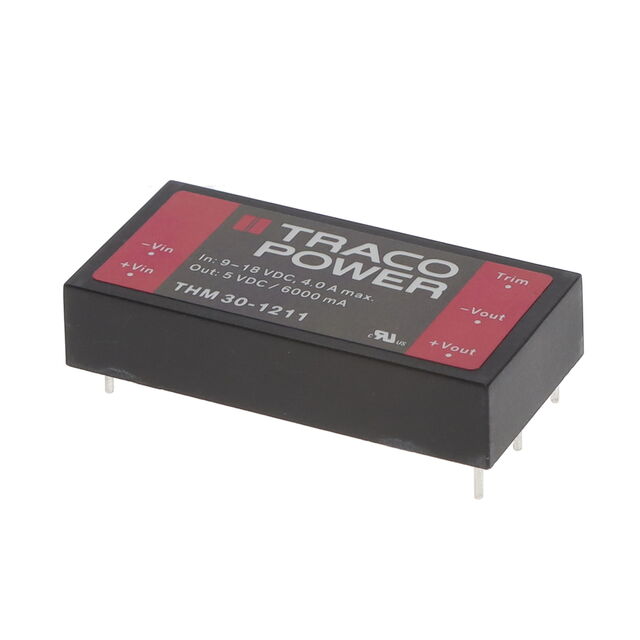

THM 30-1211

Active

Traco Power

DC DC CONVERTER 5V 30W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTHM 30 Certs Datasheet

THM 30-1211

Active

Traco Power

DC DC CONVERTER 5V 30W

Deep-Dive with AI

DocumentsTHM 30 Certs Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	THM 30-1211

Applications	Medical
Current - Output (Max) [Max]	6 A
Efficiency	88.5 %
Features	OTP, SCP, OVP, OCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	80 ¯C
Operating Temperature [Min]	-40 °C
Package / Case	5-DIP Module
Power (Watts)	30 W
Size / Dimension [x]	2 in
Size / Dimension [x]	50.8 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	18 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	5000 V
Voltage - Output 1	5 V

THM 30 Series

Part	Package / Case	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Current - Output (Max) [Max]	Power (Watts)	Number of Outputs	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Isolation	Mounting Type	Type	Voltage - Input (Min) [Min]	Features	Voltage - Input (Max) [Max]	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Current - Output (Max) [Max]
Traco Power THM 30-2413WI	5-DIP Module	Medical	-40 °C	80 ¯C	89 %	2 A	30 W	1	15 V	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	5000 V	Through Hole	Isolated Module	9 V	OCP OTP OVP SCP	36 V
Traco Power THM 30-4813WI	5-DIP Module	Medical	-40 °C	80 ¯C	89 %	2 A	30 W	1	15 V	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	5000 V	Through Hole	Isolated Module	18 V	OCP OTP OVP SCP	75 V
Traco Power THM 30-4823	5-DIP Module	Medical	-40 °C	80 ¯C	89 %		30 W	2	15 V	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	5000 V	Through Hole	Isolated Module	36 V	OCP OTP OVP SCP	75 V	-15 V	1 A	1 A
Traco Power THM 30-1222	5-DIP Module	Medical	-40 °C	80 ¯C	88.5 %		30 W	2	12 V	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	5000 V	Through Hole	Isolated Module	9 V	OCP OTP OVP SCP	18 V	-12 V	1.25 A
Traco Power THM 30-2411	5-DIP Module	Medical	-40 °C	80 ¯C	88 %	6 A	30 W	1	5 V	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	5000 V	Through Hole	Isolated Module	18 V	OCP OTP OVP SCP	36 V
Traco Power THM 30-1223	5-DIP Module	Medical	-40 °C	80 ¯C	88.5 %		30 W	2	15 V	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	5000 V	Through Hole	Isolated Module	9 V	OCP OTP OVP SCP	18 V	-15 V	1 A	1 A
Traco Power THM 30-4821	5-DIP Module	Medical	-40 °C	80 ¯C	86.5 %	3 A	30 W	2	5 V	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	5000 V	Through Hole	Isolated Module	36 V	OCP OTP OVP SCP	75 V	-5 V			3 A
Traco Power THM 30-1211	5-DIP Module	Medical	-40 °C	80 ¯C	88.5 %	6 A	30 W	1	5 V	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	5000 V	Through Hole	Isolated Module	9 V	OCP OTP OVP SCP	18 V
Traco Power THM 30-4813	5-DIP Module	Medical	-40 °C	80 ¯C	89 %	2 A	30 W	1	15 V	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	5000 V	Through Hole	Isolated Module	36 V	OCP OTP OVP SCP	75 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 86.72
		10	$ 79.70
		25	$ 77.07
		50	$ 75.14
		100	$ 73.26
		250	$ 65.14
