KD0530500000G

Active

Amphenol Anytek

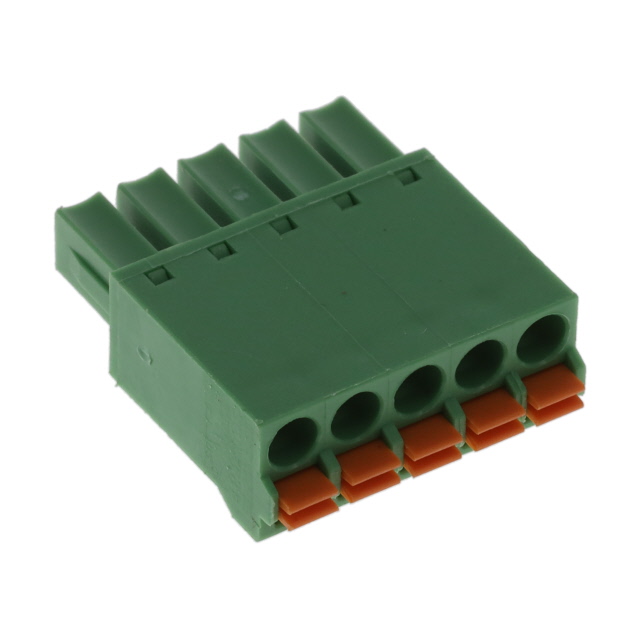

TERM BLOCK PLUG 5POS STR 3.81MM

Deep-Dive with AI

Search across all available documentation for this part.

KD0530500000G

Active

Amphenol Anytek

TERM BLOCK PLUG 5POS STR 3.81MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	KD0530500000G

Color	Green
Contact Material	Phosphor Bronze
Contact Mating Finish	Tin
Current - UL	5.5 A
Housing Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.15 in
Pitch [x]	3.81 mm
Positions Per Level	5
Termination Style	Push-In Spring, Screwless - Leg Spring
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	24 AWG
Wire Gauge or Range - AWG [Min]	16 AWG
Wire Strip Length [Max]	10 mm
Wire Strip Length [Min]	9 mm

KD05 Series

Part	Color	Termination Style	Type	Voltage - UL	Number of Levels	Material Flammability Rating	Current - UL	Contact Material	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Mounting Type	Pitch [x]	Pitch [x]	Positions Per Level	Housing Material	Contact Mating Finish	Wire Strip Length [Min]	Wire Strip Length [Max]	Features
Amphenol Anytek KD0550500000G	Green	Push-In Spring Screwless - Leg Spring	Plug Female Sockets	300 V	1	UL94 V-0	12 A	Phosphor Bronze	0.429 in	10.9 mm	-40 °C	115 °C	14 AWG	24 AWG	Free Hanging (In-Line)	0.2 in	5.08 mm	5	Thermoplastic	Tin	11 mm	12 mm
Amphenol Anytek KD0570510000G	Green	Push-In Spring Screwless - Leg Spring	Plug Female Sockets	300 V	1	UL94 V-0	12 A	Phosphor Bronze	0.429 in	10.9 mm	-40 °C	115 °C	14 AWG	24 AWG	Free Hanging (In-Line)	0.197 in	5 mm	5	Thermoplastic	Tin	11 mm	12 mm	Mating Flange Retention Latches (Wire Side)
Amphenol Anytek KD0530520000G	Green	Push-In Spring Screwless - Leg Spring	Plug Female Sockets	300 V	1	UL94 V-0	5.5 A	Phosphor Bronze			-40 °C	115 °C	16 AWG	24 AWG	Free Hanging (In-Line)	0.15 in	3.81 mm	5	Thermoplastic	Tin	9 mm	10 mm	Latch Lock
Amphenol Anytek KD0530500000G	Green	Push-In Spring Screwless - Leg Spring	Plug Female Sockets	300 V	1	UL94 V-0	5.5 A	Phosphor Bronze			-40 °C	115 °C	16 AWG	24 AWG	Free Hanging (In-Line)	0.15 in	3.81 mm	5	Thermoplastic	Tin	9 mm	10 mm
Amphenol Anytek KD0530510000G	Green	Push-In Spring Screwless - Leg Spring	Plug Female Sockets	300 V	1	UL94 V-0	5.5 A	Phosphor Bronze			-40 °C	115 °C	16 AWG	24 AWG	Free Hanging (In-Line)	0.15 in	3.81 mm	5	Thermoplastic	Tin	9 mm	10 mm	Mating Flange
Amphenol Anytek KD0510500000G	Green	Push-In Spring Screwless - Leg Spring	Plug Female Sockets	160 V	1	UL94 V-0	5.5 A	Phosphor Bronze			-40 °C	115 °C	16 AWG	24 AWG	Free Hanging (In-Line)	0.138 in	3.5 mm	5	Thermoplastic	Tin	9 mm	10 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.64
		10	$ 1.24
		25	$ 1.15
		50	$ 1.03
		100	$ 1.01
		250	$ 0.89

Description

General part information

KD05 Series

5 Position Terminal Block Plug, Female Sockets 0.150" (3.81mm) 180° Free Hanging (In-Line)
