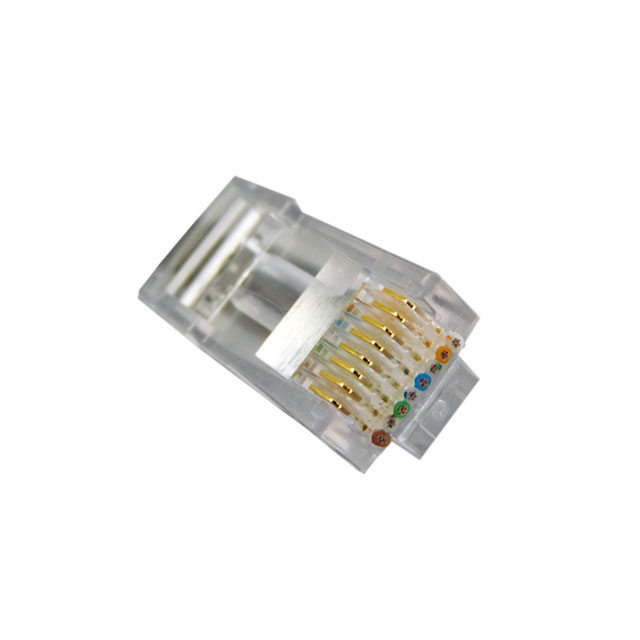

SS-39500-001

Active

BEL MAGNETIC SOLUTIONS

MODULAR CONNECTOR, RJ45 PLUG, 1 X 1 (PORT), 8P8C, CAT5E, CAT6, CABLE MOUNT

Search across all available documentation for this part.

Active

BEL MAGNETIC SOLUTIONS

MODULAR CONNECTOR, RJ45 PLUG, 1 X 1 (PORT), 8P8C, CAT5E, CAT6, CABLE MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	SS-39500-001

Cable Type	Round Cable, Solid, Stranded Wires
Color	Clear
Connector Type	Plug
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Housing Material	Polycarbonate (PC)
Length	22.48 mm
Length	0.885 in
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Ratings	Cat6
Shielding	Unshielded
Termination	IDC
Wire Gauge [Max]	26 AWG
Wire Gauge [Min]	24 AWG

Part	Cable Type	Number of Positions/Contacts	Contact Finish	Length	Length	Contact Finish Thickness	Contact Finish Thickness	Termination	Wire Gauge [Min]	Wire Gauge [Max]	Housing Material	Connector Type	Contact Material	Shielding	Color	Ratings	Features	Shield Material
BEL MAGNETIC SOLUTIONS SS-39500-001	Round Cable Solid Stranded Wires	8p8c (RJ45 Ethernet)	Gold	22.48 mm	0.885 in	50 µin	1.27 µm	IDC	24 AWG	26 AWG	Polycarbonate (PC)	Plug	Phosphor Bronze	Unshielded	Clear	Cat6
BEL MAGNETIC SOLUTIONS SS-39500-006	Round Cable Solid Stranded Wires	8p8c (RJ45 Ethernet)	Gold			50 µin	1.27 µm	IDC	24 AWG	26 AWG	Polycarbonate (PC)	Plug	Copper Alloy	Unshielded	Clear	Cat6	Molded Boot	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Plug Modular Connector 8p8c (RJ45, Ethernet) Position Unshielded Cat6 IDC
