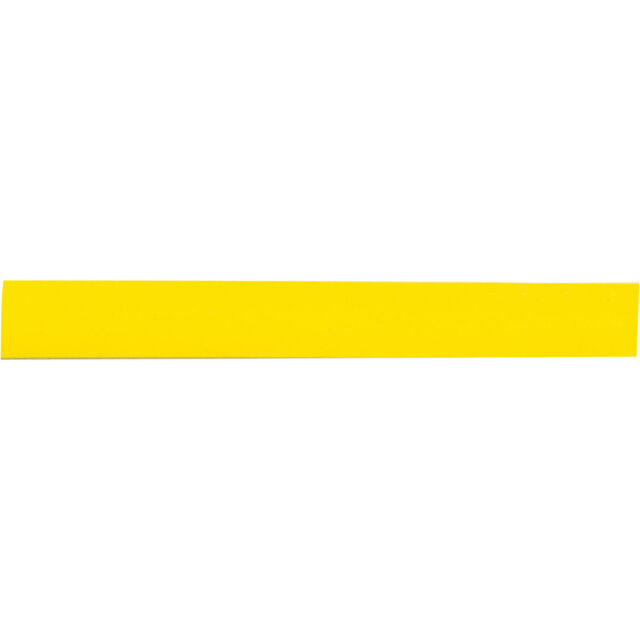

HT-C-187-YL

Active

BRADY

WIRE MARKER HEATSHRINK YELLOW

Search across all available documentation for this part.

Active

BRADY

WIRE MARKER HEATSHRINK YELLOW

Technical Specifications

Parameters and characteristics for this part

Specification	HT-C-187-YL

Cable Diameter [Max] [diameter]	3.81 mm
Cable Diameter [Max] [diameter]	0.15 in
Cable Diameter [Min] [diameter]	2.4 mm
Cable Diameter [Min] [diameter]	0.094 in
Color	Yellow
Material	Polyvinylidene Fluoride (PVDF), Irradiated
Operating Temperature [Max]	225 °C
Operating Temperature [Min]	-67 °C
Type	Wire Marker, Heat Shrinkable

Part	Type	Cable Diameter [diameter]	Cable Diameter [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Material	Color	Cable Diameter [Min] [diameter]	Cable Diameter [Max] [diameter]	Cable Diameter [Max] [diameter]	Cable Diameter [Min] [diameter]
BRADY HT-C-375-YL	Wire Marker Heat Shrinkable	0.188 in 0.32 in	4.78 mm 8.13 mm	225 °C	-67 °C	Polyvinylidene Fluoride (PVDF) Irradiated	Yellow
BRADY HT-C-187-WT-J	Wire Marker Heat Shrinkable			225 °C	-67 °C	Polyvinylidene Fluoride (PVDF) Irradiated	White	2.4 mm	3.81 mm	0.15 in	0.094 in
BRADY HT-C-375-WT-J	Wire Marker Heat Shrinkable	0.188 in 0.32 in	4.78 mm 8.13 mm	225 °C	-67 °C	Polyvinylidene Fluoride (PVDF) Irradiated	White
BRADY HT-C-187-YL-J	Wire Marker Heat Shrinkable			225 °C	-67 °C	Polyvinylidene Fluoride (PVDF) Irradiated	Yellow	2.4 mm	3.81 mm	0.15 in	0.094 in
BRADY HT-C-250-YL	Wire Marker Heat Shrinkable			225 °C	-67 °C	Polyvinylidene Fluoride (PVDF) Irradiated	Yellow
BRADY HT-C-250-WT	Wire Marker Heat Shrinkable			225 °C	-67 °C	Polyvinylidene Fluoride (PVDF) Irradiated	White
BRADY HT-C-250-WT-J	Wire Marker Heat Shrinkable			225 °C	-67 °C	Polyvinylidene Fluoride (PVDF) Irradiated	White
BRADY HT-C-187-YL	Wire Marker Heat Shrinkable			225 °C	-67 °C	Polyvinylidene Fluoride (PVDF) Irradiated	Yellow	2.4 mm	3.81 mm	0.15 in	0.094 in
BRADY HT-C-250-YL-J	Wire Marker Heat Shrinkable			225 °C	-67 °C	Polyvinylidene Fluoride (PVDF) Irradiated	Yellow
BRADY HT-C-375-YL-J	Wire Marker Heat Shrinkable	0.188 in 0.32 in	4.78 mm 8.13 mm	225 °C	-67 °C	Polyvinylidene Fluoride (PVDF) Irradiated	Yellow

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 443.64

General part information

Wire Marker, Heat Shrinkable Yellow Polyvinylidene Fluoride (PVDF), Irradiated
