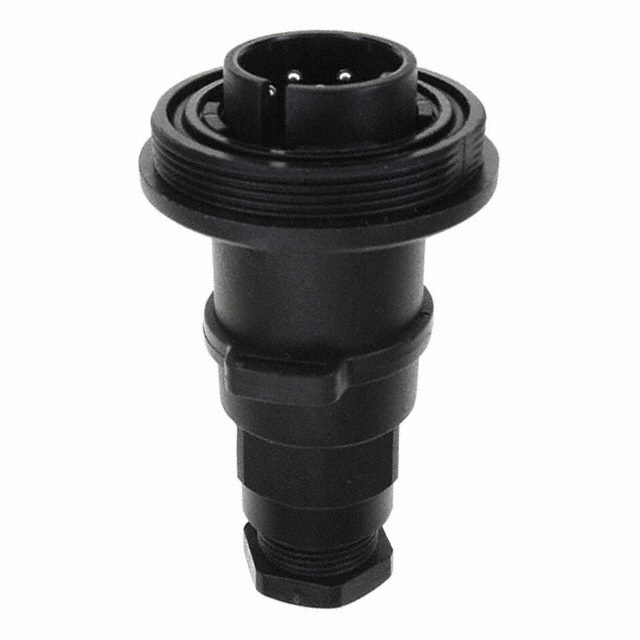

PX0746/P
ActiveBULGIN LIMITED
CIRCULAR CONNECTOR, BUCCANEER STANDARD SERIES, PLUG, 7, PIN, SCREW, CABLE MOUNT ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
PX0746/P
ActiveBULGIN LIMITED
CIRCULAR CONNECTOR, BUCCANEER STANDARD SERIES, PLUG, 7, PIN, SCREW, CABLE MOUNT ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PX0746/P |
|---|---|
| Backshell Material, Plating | Nylon, Polyamide (PA), Glass Filled |
| Cable Opening [Max] [custom] | 8 mm |
| Cable Opening [Max] [custom] | 0.315 in |
| Cable Opening [Min] [custom] | 6 mm |
| Cable Opening [Min] [custom] | 0.236 in |
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Nickel |
| Contact Material | Brass |
| Current Rating (Amps) | 3 A |
| Features | Backshell |
| Ingress Protection | IP68, IP69K |
| Insert Material | Nylon, Polyamide (PA) |
| Material Flammability Rating | UL94 HB |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Nylon, Glass Filled, Polyamide (PA) |
| Shielding | Unshielded |
| Termination | Screw |
| Voltage Rating | 277 VAC/DC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
PX0746 Series
7 (Power) Position Circular Connector Receptacle, Male Pins Screw
