1NFP9C

Active

HELLERMANNTYTON

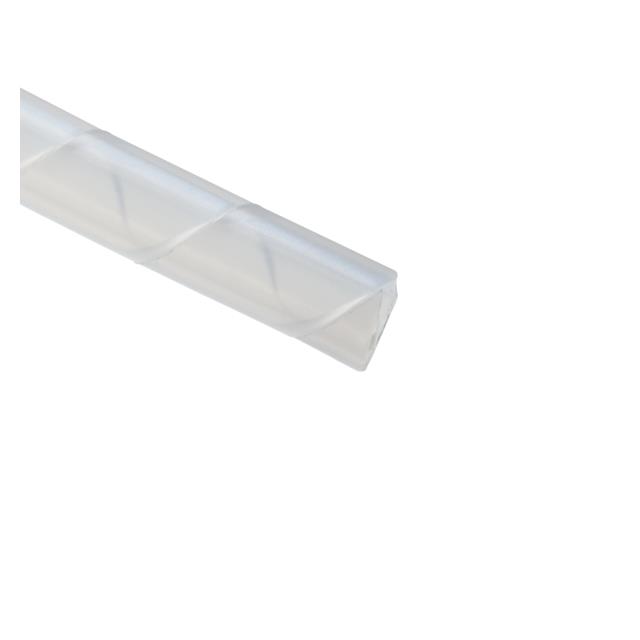

SPIRAL WRAP 1/8" X 100' NATURAL

Search across all available documentation for this part.

Active

HELLERMANNTYTON

SPIRAL WRAP 1/8" X 100' NATURAL

Technical Specifications

Parameters and characteristics for this part

Specification	1NFP9C

Abrasion Protection	Abrasion Resistant
Color	Natural
Diameter - Inside, Expanded [diameter]	12.7 mm
Diameter - Inside, Expanded [diameter]	0.5 in
Diameter - Outside, Non-Expanded [diameter]	3.18 mm
Diameter - Outside, Non-Expanded [diameter]	0.125 in
Features	Solvent Resistant, Chemical Resistant
Length	100 ft
Length	30.48 m
Material	Polyethylene (PE)
Operating Temperature [Max]	88 °C
Operating Temperature [Min]	-60 °C
Type	Spiral Wrap
Type Attributes	Harness
Wall Thickness	0.032 in
Wall Thickness	0.81 mm

Part	Type	Wall Thickness	Wall Thickness	Color	Length	Length	Type Attributes	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Diameter - Outside, Non-Expanded [diameter]	Diameter - Outside, Non-Expanded [diameter]	Abrasion Protection	Material	Features
HELLERMANNTYTON 1NFP9C	Spiral Wrap	0.032 in	0.81 mm	Natural	100 ft	30.48 m	Harness	12.7 mm	0.5 in	-60 °C	88 °C	3.18 mm	0.125 in	Abrasion Resistant	Polyethylene (PE)	Chemical Resistant Solvent Resistant
