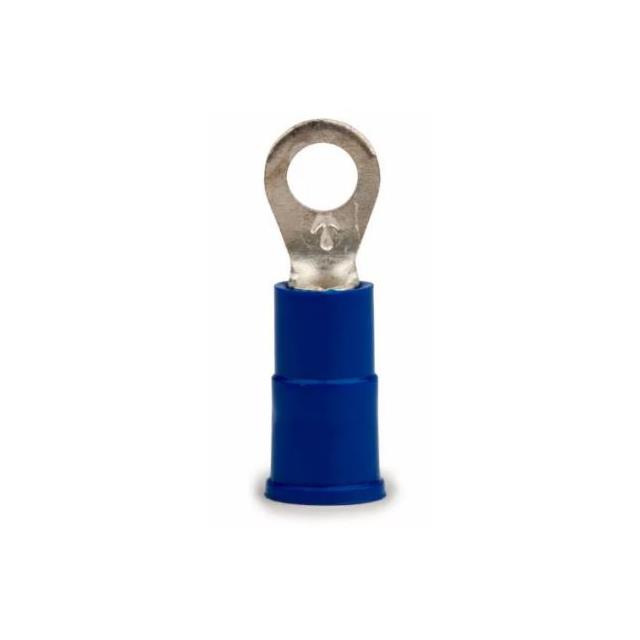

13-6S

Active

3M (TC)

CONN RING CIRC 10-12AWG #6 CRIMP

Search across all available documentation for this part.

Active

3M (TC)

CONN RING CIRC 10-12AWG #6 CRIMP

Technical Specifications

Parameters and characteristics for this part

Part	Length - Overall [x]	Length - Overall	Terminal Type	Material - Insulation	Insulation Diameter	Insulation Diameter	Color	Mounting Type	Width - Outer Edges [x]	Width - Outer Edges [x]	Features	Wire Gauge [Max]	Wire Gauge [Min]	Thickness	Thickness	Termination	Stud/Tab Size	Insulation	Contact Finish	Contact Material	Length - Overall [x]	Width - Outer Edges [y]	Width - Outer Edges [y]
3M (TC) 13-6-P	1.03 in	26.16 mm	Circular	Vinyl	0.25 "	6.35 mm	Yellow	Free Hanging (In-Line)	9.65 mm	0.38 "	Butted Seam	12 AWG	10 AWG	0.04 in	1.02 mm	Crimp	6 Stud	Insulated	Tin	Copper ETP
3M (TC) 13-6S-W	0.68 in		Circular					Free Hanging (In-Line)			Brazed Seam	12 AWG	10 AWG	0.04 in	1.02 mm	Crimp	6 Stud	Non-Insulated	Tin	Copper	17.27 mm	7.11 mm	0.28 in
3M (TC) 13-6S	0.68 in		Circular					Free Hanging (In-Line)			Butted Seam	12 AWG	10 AWG	0.04 in	1.02 mm	Crimp	6 Stud	Non-Insulated	Tin	Copper ETP	17.27 mm	7.11 mm	0.28 in
3M (TC) 13-6-NB	1.03 in	26.16 mm	Circular	Nylon Polyamide (PA)	0.25 "	6.35 mm	Yellow	Free Hanging (In-Line)	9.65 mm	0.38 "	Butted Seam	12 AWG	10 AWG	0.04 in	1.02 mm	Crimp	6 Stud	Insulated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Ring Terminal Connector 6 Stud Circular 10-12 AWG Crimp
