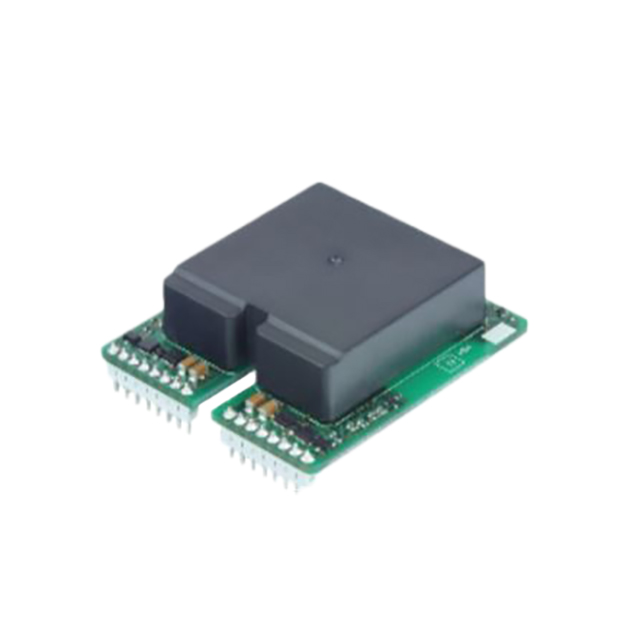

2CG010BBC14N

Active

Tamura

IC GATE DRVR HALF-BRIDGE MODULE

Search across all available documentation for this part.

Active

Tamura

IC GATE DRVR HALF-BRIDGE MODULE

Technical Specifications

Parameters and characteristics for this part

Specification	2CG010BBC14N

Channel Type	Independent
Current - Peak Output (Source, Sink) [custom]	43 A
Current - Peak Output (Source, Sink) [custom]	43 A
Driven Configuration	Half-Bridge
Input Type	Non-Inverting
Logic Voltage - VIL, VIH [custom]	3.85 V
Logic Voltage - VIL, VIH [custom]	1.65 V
Mounting Type	Through Hole
Number of Drivers	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Rise / Fall Time (Typ) [custom]	500 ns
Rise / Fall Time (Typ) [custom]	500 ns
Supplier Device Package	Module
Voltage - Supply [Max]	28 V
Voltage - Supply [Min]	13 V

Part	Logic Voltage - VIL, VIH [custom]	Logic Voltage - VIL, VIH [custom]	Channel Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Mounting Type	Supplier Device Package	Driven Configuration	Input Type	Gate Type	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Number of Drivers
Tamura 2CG010DBC11N	3.85 V	1.65 V	Independent	Module	85 °C	-40 °C	28 V	13 V	500 ns	500 ns	Through Hole	Module	Half-Bridge	Non-Inverting	IGBT	43 A	43 A	2
Tamura 2CG010BBC12N	3.85 V	1.65 V	Independent	Module	85 °C	-40 °C	28 V	13 V	500 ns	500 ns	Through Hole	Module	Half-Bridge	Non-Inverting		43 A	43 A	2
Tamura 2CG010BBC11N	3.85 V	1.65 V	Independent	Module	85 °C	-40 °C	28 V	13 V	500 ns	500 ns	Through Hole	Module	Half-Bridge	Non-Inverting		43 A	43 A	2
Tamura 2CG010BBC14N	3.85 V	1.65 V	Independent	Module	85 °C	-40 °C	28 V	13 V	500 ns	500 ns	Through Hole	Module	Half-Bridge	Non-Inverting		43 A	43 A	2
Tamura 2CG010BBC13N	3.85 V	1.65 V	Independent	Module	85 °C	-40 °C	28 V	13 V	500 ns	500 ns	Through Hole	Module	Half-Bridge	Non-Inverting		43 A	43 A	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 60.00

General part information

Half-Bridge Gate Driver IC Non-Inverting Module
