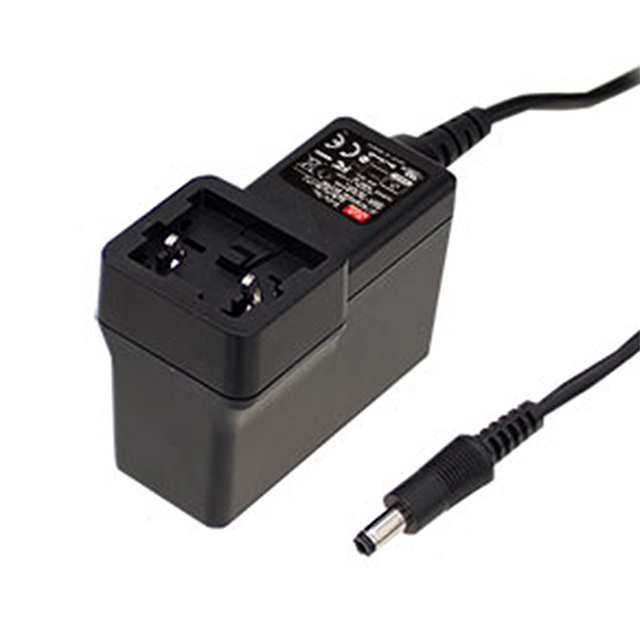

GEM40I15-P1J
ObsoleteMEAN WELL USA Inc.
AC/DC WALL MOUNT ADAPTER 15V 40W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GEM40I15-P1J |
|---|---|
| Applications | Medical |
| Approval Agency | CB, CE, cRUus, TUV |
| Cord Length | 1 m |
| Cord Length | 39.4 " |
| Current - Output (Max) [Max] | 2.66 A |
| Efficiency | Level VI |
| Form | Wall Mount (Class II) |
| Input Connector | Multi-Blade |
| Input Type | Multi-Blade (Sold Separately) |
| No Load Power Consumption | 100 mW |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.1 mm |
| Output Connector [z] | 11 mm |
| Polarization | Positive Center |
| Power (Watts) | 40 W |
| Region Utilized | International |
| Size / Dimension [x] | 75.5 mm |
| Size / Dimension [x] | 2.97 in |
| Size / Dimension [y] | 1.54 " |
| Size / Dimension [y] | 39.1 mm |
| Size / Dimension [z] | 56.2 mm |
| Size / Dimension [z] | 2.21 " |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 80 VAC |
| Voltage - Output | 15 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 28.50 | |
Description
General part information
GEM40I15 Series
15V 40 W AC/DC External Wall Mount (Class II) Adapter Multi-Blade (Sold Separately) Input
