1523R 010500

Active

Belden Inc.

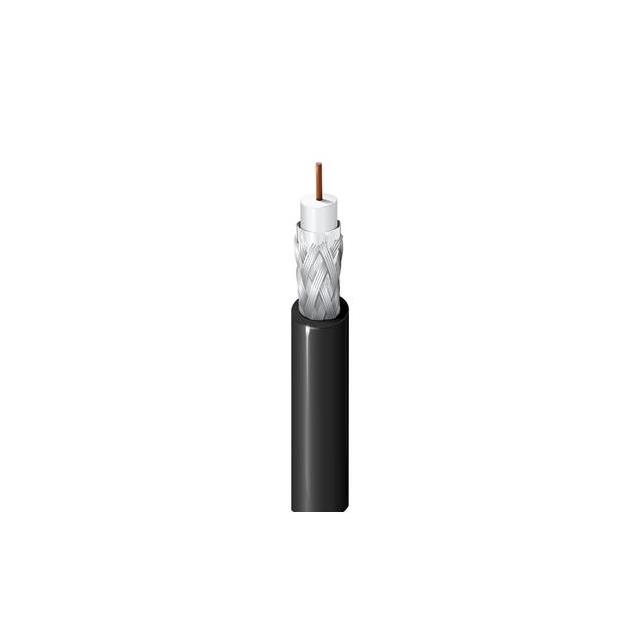

COAX 75 OHM RG11 14AWG

Search across all available documentation for this part.

Active

Belden Inc.

COAX 75 OHM RG11 14AWG

Technical Specifications

Parameters and characteristics for this part

Specification	1523R 010500

Cable Group	RG-11
Cable Type	Coaxial
Conductor Material	Steel, Copper Coated
Conductor Strand	Solid
Dielectric Diameter [diameter]	0.28 in
Dielectric Diameter [diameter]	7.11 mm
Dielectric Material	Foam Polyethylene (FPE)
Impedance	75 Ohms
Jacket (Insulation) Diameter [diameter]	0.4 "
Jacket (Insulation) Diameter [diameter]	10.16 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	152.4 m
Length	6000 in
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Shield Coverage	60%, 100%
Shield Material	Aluminum
Shield Type	Foil, Braid
VoP, Velocity of Propagation	83
Wire Gauge	13.5 AWG

Part	Shield Material	Cable Type	VoP, Velocity of Propagation	Wire Gauge	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Conductor Strand	Jacket (Insulation) Material	Jacket Color	Dielectric Material	Cable Group	Shield Type	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Shield Coverage	Length	Length
Belden Inc. 1523R 010500	Aluminum	Coaxial	83	13.5 AWG	0.28 in	7.11 mm	Solid	Poly-Vinyl Chloride (PVC)	Black	Foam Polyethylene (FPE)	RG-11	Braid Foil	Copper Coated Steel	0.4 "	10.16 mm	-30 ░C	80 C	75 Ohms	100% 60%	152.4 m	6000 in
Belden Inc. 1523R 0101000	Aluminum	Coaxial	83	13.5 AWG	0.28 in	7.11 mm	Solid	Poly-Vinyl Chloride (PVC)	Black	Foam Polyethylene (FPE)	RG-11	Braid Foil	Copper Coated Steel	0.4 "	10.16 mm	-30 ░C	80 C	75 Ohms	100% 60%	304.8 m	1000 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 0.55

General part information

Coaxial Cable 14 AWG RG-11 500.0' (152.40m) 75 Ohms
