OA254AP-11-1TB

Active

Orion Fans

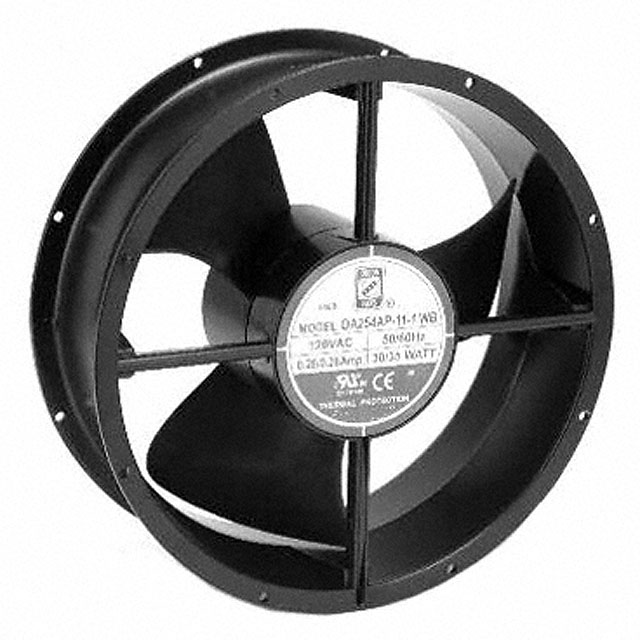

AC AXIAL FAN, 115V, CIRCULAR, 254 MM, 89 MM, BALL BEARING, 547 CFM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

OA254AP-11-1TB

Active

Orion Fans

AC AXIAL FAN, 115V, CIRCULAR, 254 MM, 89 MM, BALL BEARING, 547 CFM

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	OA254AP-11-1TB

Air Flow	15.32 m³/min
Air Flow	547 CFM
Approval Agency	cURus, TUV
Bearing Type	Ball
Current Rating (Amps)	0.29 A
Fan Type	Tubeaxial
Features	Capacitor, Thermal Overload Protector (TOP)
Lifetime @ Temp.	60000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT)
Material - Frame	Aluminum
Noise	55 dB
Operating Temperature [Max]	80 C
Operating Temperature [Max]	80 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	35 W
RPM	1650 RPM
Size / Dimension	Round
Size / Dimension [diameter]	10 in
Static Pressure	0.39 in H2O
Static Pressure	97.1 Pa
Termination	2 Terminals
Voltage - Rated	115 VAC
Voltage Range [Max]	130 VAC
Voltage Range [Min]	80 VAC
Weight	1.9 kg
Weight	4.2 lbs
Width [y]	89 mm

OA254AP Series

Part	Size / Dimension [diameter]	Size / Dimension	Air Flow	Air Flow	Noise	RPM	Weight	Weight	Bearing Type	Static Pressure	Static Pressure	Power (Watts)	Material - Frame	Current Rating (Amps)	Termination	Width [y]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Lifetime @ Temp.	Approval Agency	Voltage - Rated	Features	Fan Type	Material - Blade	Voltage Range [Min]	Voltage Range [Max]
Orion Fans OA254AP-11-1TBSF	10 in	Round	550 CFM	15.4 mł/min	55 dB	1650 RPM	4.3 lbs	2 kg	Ball	0.4 in H2O	99.6 Pa	33 W	Aluminum	0.29 A	2 Terminals	89 mm	80 C	80 °C	-20 °C	-20 C	60000 Hrs	cURus TUV	115 VAC	Capacitor Salt Fog Rated Thermal Overload Protector (TOP)	Tubeaxial	Polybutylene Terephthalate (PBT)
Orion Fans OA254AP-11-1TB	10 in	Round	547 CFM	15.32 m³/min	55 dB	1650 RPM	4.2 lbs	1.9 kg	Ball	0.39 in H2O	97.1 Pa	35 W	Aluminum	0.29 A	2 Terminals	89 mm	80 C	80 °C	-20 °C	-20 C	60000 Hrs	cURus TUV	115 VAC	Capacitor Thermal Overload Protector (TOP)	Tubeaxial	Polybutylene Terephthalate (PBT)	80 VAC	130 VAC
Orion Fans OA254AP-22-1TBSF	10 in	Round	550 CFM	15.4 mł/min	55 dB	1650 RPM	4.3 lbs	2 kg	Ball	0.4 in H2O	99.6 Pa	33 W	Aluminum	140 mA	2 Terminals	89 mm	80 C	80 °C	-20 °C	-20 C	60000 Hrs	cURus TUV	230 VAC	Capacitor Salt Fog Rated Thermal Overload Protector (TOP)	Tubeaxial	Polybutylene Terephthalate (PBT)
Orion Fans OA254AP-22-1WB	10 in	Round	547 CFM	15.32 m³/min	55 dB	1650 RPM	4.2 lbs	1.9 kg	Ball	0.39 in H2O	97.1 Pa	35 W	Aluminum	140 mA	2 Wire Leads	89 mm	80 C	80 °C	-20 °C	-20 C	60000 Hrs	cURus TUV	230 VAC	Capacitor Thermal Overload Protector (TOP)	Tubeaxial	Polybutylene Terephthalate (PBT)	160 VAC	260 VAC
Orion Fans OA254AP-11-1WB	10 in	Round	547 CFM	15.32 m³/min	55 dB	1650 RPM	4.2 lbs	1.9 kg	Ball	0.39 in H2O	97.1 Pa	35 W	Aluminum	0.29 A	2 Wire Leads	89 mm	80 C	80 °C	-20 °C	-20 C	60000 Hrs	cURus TUV	115 VAC	Capacitor Thermal Overload Protector (TOP)	Tubeaxial	Polybutylene Terephthalate (PBT)	80 VAC	130 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 101.01
		10	$ 90.78
		30	$ 89.51
		50	$ 83.75
		100	$ 81.83
Newark	Each	1	$ 102.13
		5	$ 99.58
		10	$ 97.02
		25	$ 91.92
		50	$ 86.81
		100	$ 81.70

Description

General part information

OA254AP Series

Fan Tubeaxial 115VAC Round - 254mm Dia Ball 547.0 CFM (15.32m³/min) 2 Terminals

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
