DC2594A

Active

Analog Devices

DEMO BOARD, MICRO MODULE REGULATOR ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Analog Devices

DEMO BOARD, MICRO MODULE REGULATOR ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Features	Voltage - Input (Min) [Min]	Voltage - Output 2 [Max]	Current - Output (Max)	Power (Watts)	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Mounting Type	Applications	Number of Outputs	Type	Main Purpose	Utilized IC / Part	Board Type	Voltage - Output	Outputs and Type	Outputs and Type	Frequency - Switching	Current - Output	Voltage - Input [Max]	Voltage - Input [Min]	Supplied Contents
Analog Devices LTM4655EY#PBF	16 mm	0.21 in	5.2 mm	0.63 "	0.63 in	16 mm	144-BBGA Module	125 °C	-40 °C	144-BGA (16x16)	Adjustable Output	3.1 V	-26.5 V	4 A	50 W	26.5 V	0.5 V	Surface Mount	ITE (Commercial)	2	Non-Isolated PoL Module
Analog Devices LTM4655MPY	16 mm	0.21 in	5.2 mm	0.63 "	0.63 in	16 mm	144-BBGA Module	125 °C	-55 °C	144-BGA (16x16)	Adjustable Output	3.1 V	-26.5 V	4 A	96 W	26.5 V	0.5 V	Surface Mount	ITE (Commercial)	2	Non-Isolated PoL Module
Analog Devices DC2594A																						DC/DC Positive and Negative	LTM4655	Fully Populated	12 V	2	Non-Isolated	1.2 MHz	2.5 A 4 A	28 V	13 V	Board(s)
Analog Devices LTM4655MPY#PBF	16 mm	0.21 in	5.2 mm	0.63 "	0.63 in	16 mm	144-BBGA Module	125 °C	-55 °C	144-BGA (16x16)	Adjustable Output	3.1 V	-26.5 V	4 A	212 W	26.5 V	0.5 V	Surface Mount	ITE (Commercial)	2	Non-Isolated PoL Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 77.35
Newark	Each	1	$ 79.77

General part information

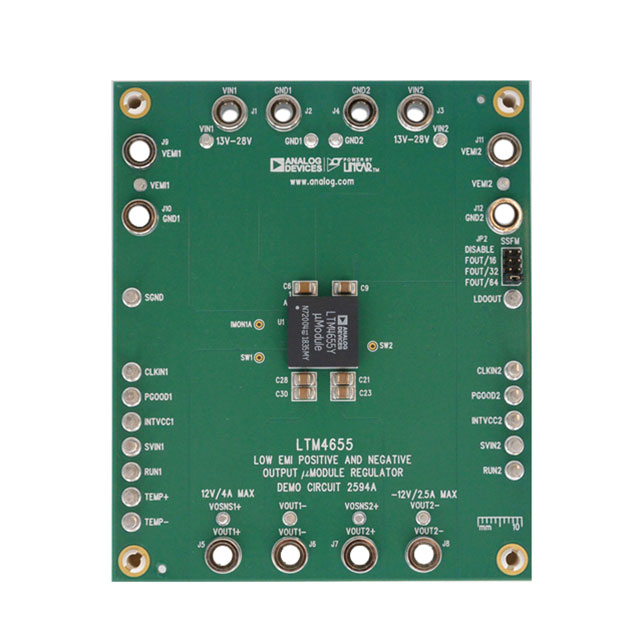

LTM4655 µModule® DC/DC, Positive and Negative 2, Non-Isolated Outputs Evaluation Board
