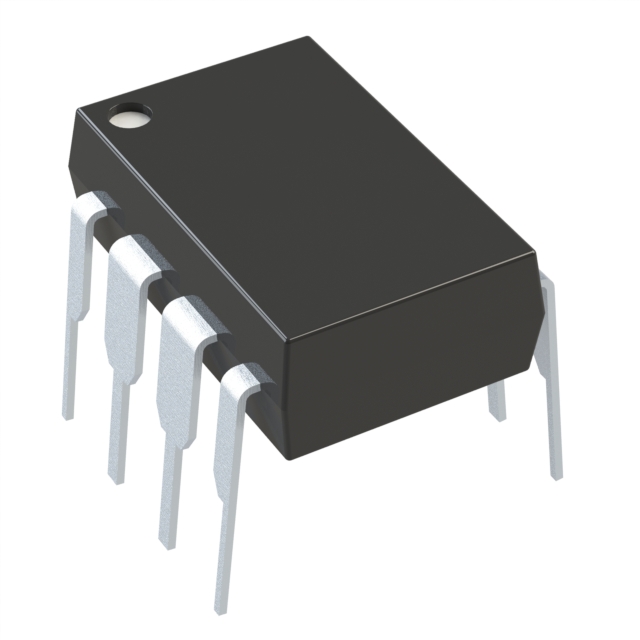

MCP4141-503E/P
ActiveDIGITAL POTENTIOMETER, NON-VOLATILE, 50 KOHM, SINGLE, 129 STEPS, ± 150 PPM/°C, 2.7 V TO 5.5 V, 8 PIN… MORE
Deep-Dive with AI
Search across all available documentation for this part.
MCP4141-503E/P
ActiveDIGITAL POTENTIOMETER, NON-VOLATILE, 50 KOHM, SINGLE, 129 STEPS, ± 150 PPM/°C, 2.7 V TO 5.5 V, 8 PIN… MORE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MCP4141-503E/P |
|---|---|
| Configuration | Potentiometer |
| Interface | SPI |
| Memory Type | Non-Volatile |
| Mounting Type | Through Hole |
| Number of Circuits | 1 |
| Number of Taps | 129 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 0.3 in |
| Package / Case | 8-DIP |
| Package / Case | 7.62 mm |
| Resistance - Wiper (Ohms) (Typ) | 75 Ohms |
| Resistance (Ohms) | 50 kOhms |
| Supplier Device Package | 8-PDIP |
| Taper | Linear |
| Temperature Coefficient (Typ) | 150 ppm/°C |
| Tolerance | 20 % |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.16 | |
| 25 | $ 0.96 | |||
| 100 | $ 0.87 | |||
| Microchip Direct | TUBE | 1 | $ 1.16 | |
| 25 | $ 0.96 | |||
| 100 | $ 0.87 | |||
| 1000 | $ 0.84 | |||
| 5000 | $ 0.83 | |||
| Newark | Each | 120 | $ 0.91 | |
Description
General part information
mcp4141 Series
The MCP41/424X devices are non-volatile, 7-bit (129 wiper steps) digital potentiometers with EEPROM and an SPI compatible interface. The MCP41/42XX family is available with end-to-end resistor values of 5KΩ, 10KΩ, 50kΩ and 100KΩ. These devices offer WiperLock™ Technology which allows the user unlimited reprogramming and locking of the wiper setting. It is useful for equipment that requires factory trimming or recalibration. The MCP41/42XX devices offer a variety of configurations simplifying design while minimizing cost, package size and pin count.
