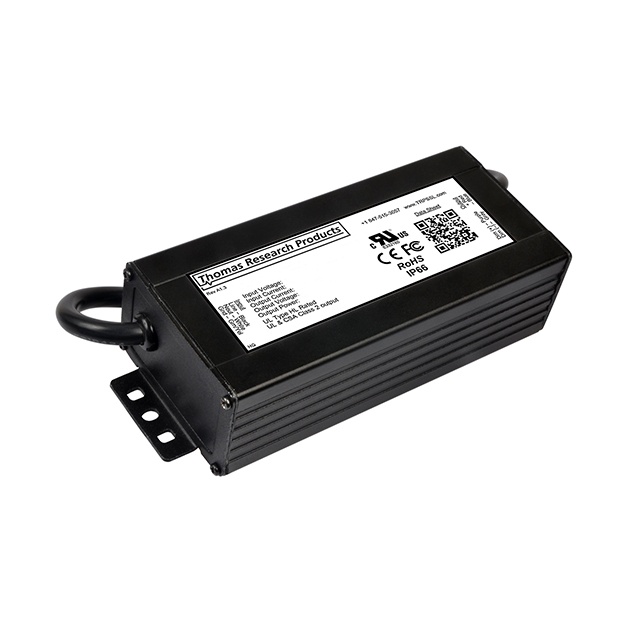

PLED60W-054-C1050-D
ObsoleteThomas Research Products
LED DRIVER CC AC/DC 18-54V 1.05A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PLED60W-054-C1050-D
ObsoleteThomas Research Products
LED DRIVER CC AC/DC 18-54V 1.05A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PLED60W-054-C1050-D |
|---|---|
| Approval Agency | CE, cURus |
| Current - Output (Max) [Max] | 1.05 A |
| Dimming | Analog |
| Efficiency | 88 % |
| Features | SCP, OCP, OVP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Power (Watts) | 60 W |
| Ratings | NEMA 6, IP66 |
| Size / Dimension [x] | 5.12 " |
| Size / Dimension [x] | 130 mm |
| Size / Dimension [y] | 2.33 in |
| Size / Dimension [y] | 59.2 mm |
| Size / Dimension [z] | 1.47 in |
| Size / Dimension [z] | 37.3 mm |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 305 VAC |
| Voltage - Input (Min) [Min] | 90 VAC |
| Voltage - Output [Max] | 54 V |
| Voltage - Output [Min] | 18 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PLED60W Series
1.05A 18 ~ 54V Constant Current LED Driver AC DC Converter Topology 1 Output
