LM1-5-W-G
ActiveSwitch Components

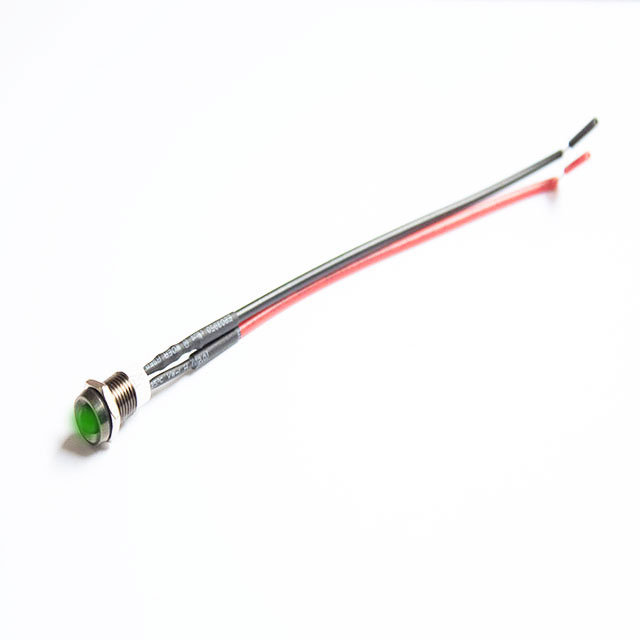

LED INDICATOR 5MM - GREEN, SCREW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LM1-5-W-G |
|---|---|
| Ingress Protection | IP67 |
| Lamp Color | Green |
| Lens Color | Colorless |
| Lens Size [diameter] | 5 mm Dia |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 8000 mcd |
| Panel Cutout Dimensions | 8 mm |
| Panel Cutout Dimensions | 0.315 in |
| Panel Cutout Shape | Round |
| Termination Style | Wire Leads - 4.9" (125.0mm) |
| Type | LED |
| Viewing Angle | 15 ° |
| Voltage | 3.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.10 | |
| 10 | $ 4.36 | |||
| 25 | $ 3.61 | |||
| 50 | $ 3.28 | |||
| 100 | $ 2.91 | |||
| 250 | $ 2.68 | |||
| 500 | $ 2.42 | |||
| 1000 | $ 2.19 | |||
Description
General part information
LM1-5 Series
LED Panel Indicator Green Clear 15° 3.2V 20mA Wire Leads - 4.9" (125.0mm)
