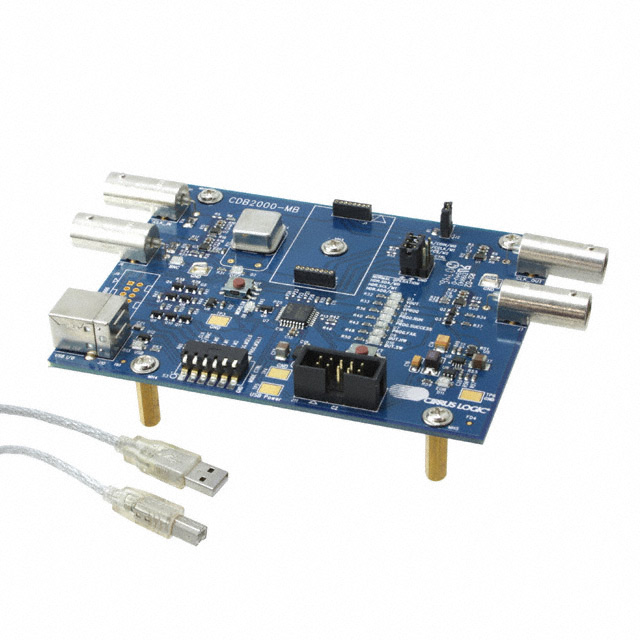

CDB2000-MB

Obsolete

Cirrus Logic Inc.

BOARD EVAL GEN PURPOSE PLL

Search across all available documentation for this part.

Obsolete

Cirrus Logic Inc.

BOARD EVAL GEN PURPOSE PLL

Technical Specifications

Parameters and characteristics for this part

Specification	CDB2000-MB

Contents	Board(s)
Embedded	False
Function	Clock Generator
Primary Attributes	Fractional-N, Low Jitter Clock Synthesizer, Clock Multiplier
Primary Attributes [Max]	75 MHz
Primary Attributes [Min]	6 MHz
Secondary Attributes	I2C, SPI, USB
Supplied Contents	Board(s)
Type	Timing
Utilized IC / Part	CS2000

Part	Function	Contents	Secondary Attributes	Supplied Contents	Primary Attributes	Primary Attributes [Max]	Primary Attributes [Min]	Utilized IC / Part	Type	Accessory Type	For Use With/Related Products
Cirrus Logic Inc. CDB2000-MB	Clock Generator	Board(s)	I2C SPI USB	Board(s)	Clock Multiplier Fractional-N Low Jitter Clock Synthesizer	75 MHz	6 MHz	CS2000	Timing
Cirrus Logic Inc. CDB2000-PC-CLK										Daughter Board	CDB2000-MB
Cirrus Logic Inc. CDB2000-PC-LCO										Daughter Board	CDB2000-MB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 333.94

General part information

CS2000 - Clock Generator Timing Evaluation Board
