C6351A.41.10

Active

Prysmian Group

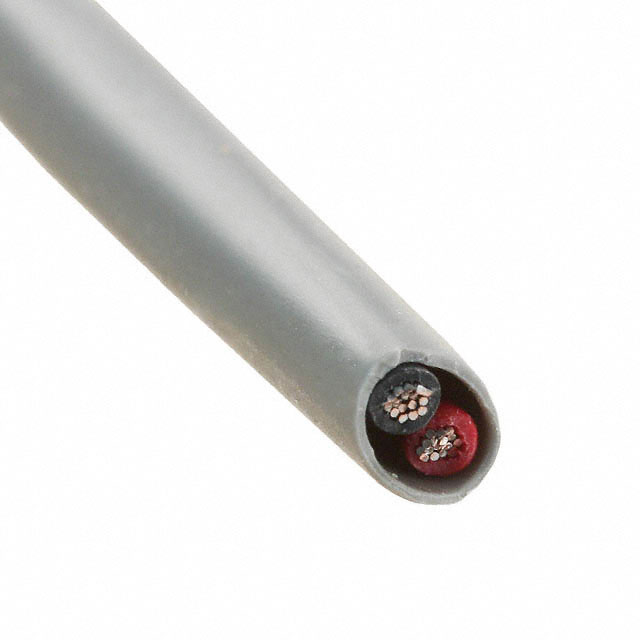

CABLE 2COND 20AWG GRAY

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 2COND 20AWG GRAY

Technical Specifications

Parameters and characteristics for this part

Specification	C6351A.41.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	4.88 mm
Jacket (Insulation) Diameter [diameter]	0.192 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.025 in
Jacket (Insulation) Thickness	0.635 mm
Jacket Color	Gray
Length	1000 ft
Length	304.8 m
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	300 V
Wire Gauge	20 AWG

Part	Length	Length	Conductor Material	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Insulation	Jacket Color	Jacket (Insulation) Material	Wire Gauge	Usage	Length [x]	Length [x]	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Voltage
Prysmian Group C6351A.41.10	1000 ft	304.8 m	Copper Tinned	2	28	7	4.88 mm	0.192 in	-20 C	80 C	Poly-Vinyl Chloride (PVC)	Gray	Poly-Vinyl Chloride (PVC)	20 AWG	Communication Control	500 '	152.4 m	0.025 in	0.635 mm	Multi-Conductor	300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Conductor Multi-Conductor Cable Gray 20 AWG 1000.0' (304.8m)
