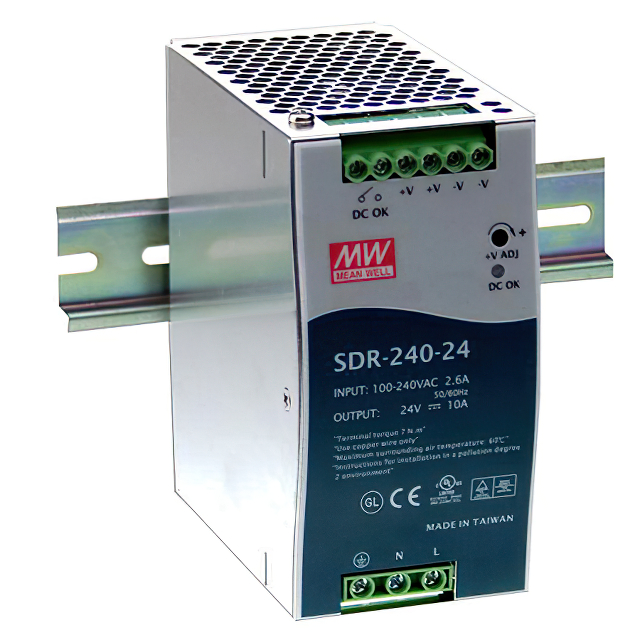

BB-SDR-240-24

Obsolete

Advantech Corp

AC/DC DIN RAIL SUPPLY 24V 240W

Search across all available documentation for this part.

Obsolete

Advantech Corp

AC/DC DIN RAIL SUPPLY 24V 240W

Technical Specifications

Parameters and characteristics for this part

Part	Features	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Efficiency	Current - Output (Max) [Max]	Number of Outputs	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Power (Watts)	Input Type	AC Voltage - Input [Min] [custom]	AC Voltage - Input [Max] [custom]	Size / Dimension [z]	Size / Dimension [y]
Advantech Corp BB-SDR-480-24	Adjustable Output	24 V	85.5 mm	5.06 in	125.2 mm	3.37 "	4.93 in	128.5 mm	3000 V	-25 °C	70 °C	Industrial ITE (Commercial)	94 %	20 A	1	90 VAC	264 VAC	480 W	AC
Advantech Corp BB-SDR-480P-24	Adjustable Output	24 V	85.5 mm	5.06 in	125.2 mm	3.37 "	4.93 in	128.5 mm	3000 V	-25 °C	70 °C	Industrial ITE (Commercial)	94 %	20 A	1	90 VAC	264 VAC	480 W	AC
Advantech Corp BB-SDR-240-24	Adjustable Output	24 V		4.47 in		2.48 in	4.94 in	113.5 mm	3000 V	-25 °C	70 °C	Industrial ITE (Commercial)	94 %	10 A	1			240 W	AC	88 VAC	264 VAC	125.2 mm	63 mm
Advantech Corp BB-SDR-240-48	Adjustable Output	48 V		4.47 in		2.48 in	4.94 in	113.5 mm	3000 V	-25 °C	70 °C	Industrial ITE (Commercial)	94 %	5 A	1			240 W	AC	88 VAC	264 VAC	125.2 mm	63 mm
Advantech Corp BB-SDR-120-12	Adjustable Output	12 V	40 mm	4.47 in	125.2 mm	1.57 "	4.94 in	113.5 mm	3000 V	-25 °C	70 °C	Industrial ITE (Commercial)	89 %	10 A	1				AC	88 VAC	264 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

AC/DC DIN RAIL SUPPLY 24V 240W

Technical documentation and resources
