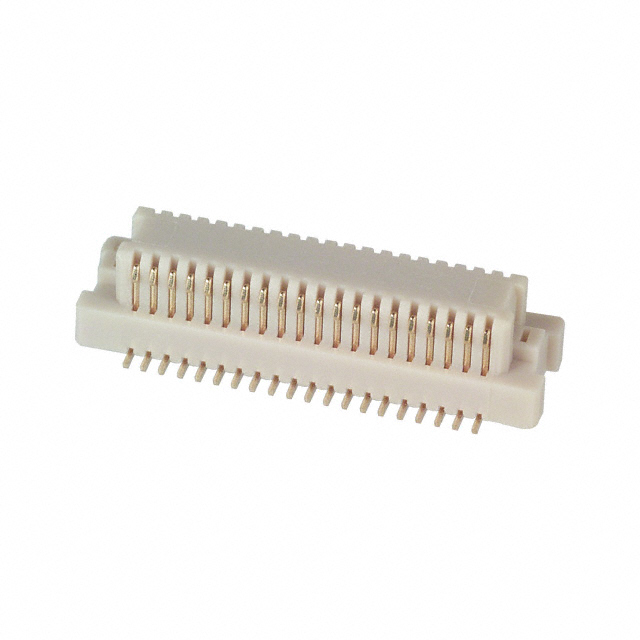

DF15C(0.8)-40DS-0.65V(50)

Obsolete

Hirose Electric USA, Inc.

CONN RCPT 40POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN RCPT 40POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	DF15C(0.8)-40DS-0.65V(50)

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Height Above Board	0.118 in
Height Above Board	3 mm
Mated Stacking Heights	5 mm, 7 mm, 4 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch [x]	0.026 in
Pitch [x]	0.65 mm

Part	Mated Stacking Heights	Height Above Board	Height Above Board	Mounting Type	Connector Type	Contact Finish	Pitch [x]	Pitch [x]	Number of Rows	Number of Positions
Hirose Electric USA, Inc. DF15C(0.8)-40DS-0.65V(50)	4 mm 5 mm 7 mm	0.118 in	3 mm	Surface Mount	Center Strip Contacts Receptacle	Gold	0.026 in	0.65 mm	2	40

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

40 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
