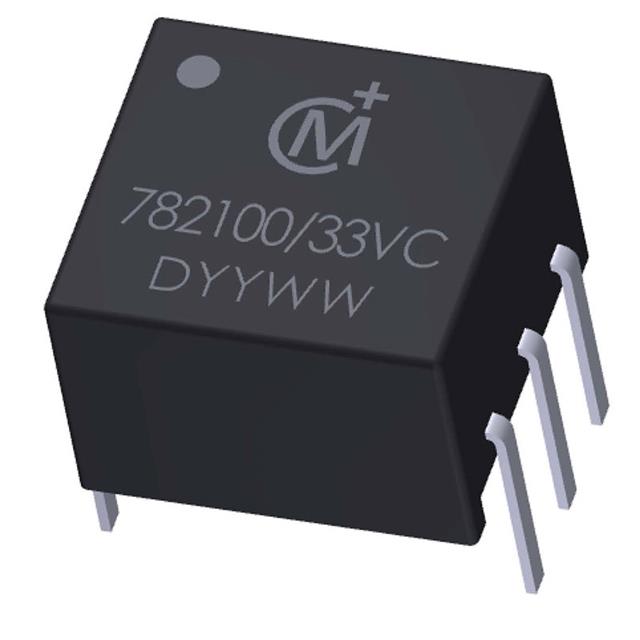

782100/53VC

Active

Murata Power Solutions Inc.

SMPS TRANSFORMER, TOROIDAL CONVERTER, 4 KV, 5V

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

SMPS TRANSFORMER, TOROIDAL CONVERTER, 4 KV, 5V

Technical Specifications

Parameters and characteristics for this part

Specification	782100/53VC

For Use With/Related Products	PE22100
Height - Seated (Max)	6.35 mm
Height - Seated (Max) [Max]	0.25 in
Inductance	260 µH
Mounting Type	Through Hole
Size / Dimension [x]	0.385 in
Size / Dimension [x]	9.77 mm
Size / Dimension [y]	0.36 "
Size / Dimension [y]	9.14 mm

Part	Mounting Type	Height - Seated (Max)	Height - Seated (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	For Use With/Related Products	Inductance
Murata Power Solutions Inc. 782100/53VC	Through Hole	6.35 mm	0.25 in	0.385 in	0.36 "	9.77 mm	9.14 mm	PE22100	260 µH
Murata Power Solutions Inc. 782100/33VC	Through Hole	6.35 mm	0.25 in	0.385 in	0.36 "	9.77 mm	9.14 mm	PE22100	310 µH
Murata Power Solutions Inc. 782100/55JVC-R	Surface Mount	6.35 mm	0.25 in	0.375 in	0.354 in	9.52 mm	9 mm
Murata Power Solutions Inc. 782100/35JVC-R	Surface Mount	6.35 mm	0.25 in	0.5 in	0.354 in	12.7 mm	9 mm	PE22100	203 µH
Murata Power Solutions Inc. 782100/55JVC	Surface Mount	6.35 mm	0.25 in	0.5 in	0.354 in	12.7 mm	9 mm	PE22100	335 µH

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	50	$ 2.95
Newark	Each	1	$ 3.26

General part information

SMPS TRANSFORMER, TOROIDAL CONVERTER, 4 KV, 5V

Technical documentation and resources
