10026804-001LF

Active

Amphenol ICC (FCI)

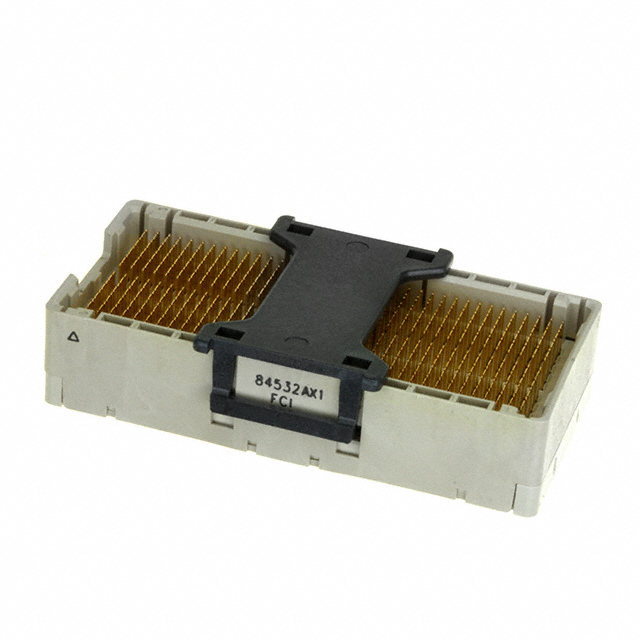

CONN DIFF ARRAY PLUG 296POS SMD

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN DIFF ARRAY PLUG 296POS SMD

Technical Specifications

Parameters and characteristics for this part

Specification	10026804-001LF

Connector Type	Differential Pair Array, Male
Contact Finish	GXT™, Gold or Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Height Above Board	11.64 mm
Height Above Board	0.458 in
Mated Stacking Heights	27 mm, 17 mm, 22 mm
Mounting Type	Surface Mount
Number of Positions [custom]	148
Number of Positions [custom]	296
Number of Rows [custom]	18
Pitch [x]	1.3 mm
Pitch [x]	0.051 in

Part	Pitch [x]	Pitch [x]	Height Above Board	Height Above Board	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions [custom]	Number of Positions [custom]	Contact Finish	Mounting Type	Number of Rows [custom]	Mated Stacking Heights
Amphenol ICC (FCI) 10026804-001LF	1.3 mm	0.051 in	11.64 mm	0.458 in	Differential Pair Array Male	0.76 Ám	30 Áin	148	296	Gold or Gold GXT™	Surface Mount	18	17 mm 22 mm 27 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

296 Signal (148 Pair) Position Connector Differential Pair Array, Male Surface Mount Gold or Gold, GXT™
