HP-CWS-R04-085-N

Active

Boyd Laconia, LLC

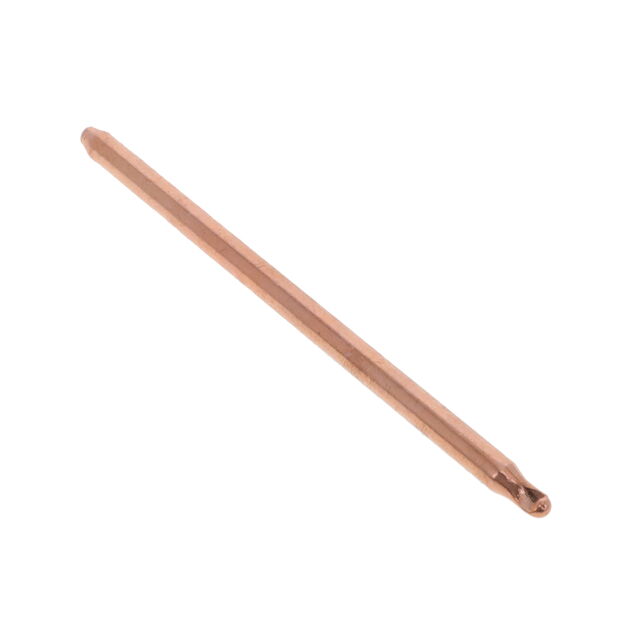

HEAT PIPE ROUND 4 OD 85MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HP-CWS-R04-085-N

Active

Boyd Laconia, LLC

HEAT PIPE ROUND 4 OD 85MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HP-CWS-R04-085-N

Attachment Method	Epoxy, Solder
Length	85 mm
Length [x]	3.346 in
Material	Copper
Operating Temperature [Max]	180 °C
Operating Temperature [Min]	-55 °C
Power - Cooling	85 mm, 91 W
Shape	Round
Type	Heat Pipe
Wick Type	Sintered

HP-CWS Series

Part	Wick Type	Diameter [diameter]	Diameter [diameter]	Length [x]	Length [x]	Shape	Material	Power - Cooling	Operating Temperature [Min]	Operating Temperature [Max]	Attachment Method	Type	Length	Height [z]	Height [z]	Width [y]	Width [y]	Width [x]	Width [x]	Diameter	Diameter	Length
Boyd Laconia, LLC HP-CWS-R10-321-K	Sintered	0.394 in	10 mm	321 mm	12.638 "	Round	Copper	85 W 321 mm	-55 °C	180 °C	Epoxy Solder	Heat Pipe
Boyd Laconia, LLC HP-CWS-R04-085-N	Sintered				3.346 in	Round	Copper	85 mm 91 W	-55 °C	180 °C	Epoxy Solder	Heat Pipe	85 mm
Boyd Laconia, LLC HP-CWS-R04-302-N	Sintered					Round	Copper	28 W 302 mm	-55 °C	180 °C	Epoxy Solder	Heat Pipe
Boyd Laconia, LLC HP-CWS-F04X25-100-N	Sintered			0.1 m	3.937 in	Flat	Copper	35 W	-55 °C	180 °C	Epoxy Solder	Heat Pipe		2.5 mm	0.098 in	0.197 in	5 mm
Boyd Laconia, LLC HP-CWS-F08X47-150-N	Sintered			150 mm	5.906 "	Flat	Copper	54 W 150 mm	-55 °C	180 °C	Epoxy Solder	Heat Pipe		4.7 mm	0.185 in	0.394 in	10 mm
Boyd Laconia, LLC HP-CWS-R10-101-K	Sintered	0.394 in	10 mm	101 mm	3.976 in	Round	Copper		-55 °C	180 °C	Epoxy Solder	Heat Pipe
Boyd Laconia, LLC HP-CWS-F06X28-150-N	Sintered			150 mm	5.906 "	Flat	Copper	36 W 150 mm	-55 °C	180 °C	Epoxy Solder	Heat Pipe		2.8 mm	0.11 in			8 mm	0.315 in
Boyd Laconia, LLC HP-CWS-F05X35-150-N	Sintered			150 mm	5.906 "	Flat	Copper	33 W 150 mm	-55 °C	180 °C	Epoxy Solder	Heat Pipe		3.5 mm	0.138 in			6 mm	0.236 in
Boyd Laconia, LLC HP-CWS-R08-200-N	Sintered					Round	Copper	99 W 200 mm	-55 °C	180 °C	Epoxy Solder	Heat Pipe	200 mm							8 mm	0.315 in	7.874 in
Boyd Laconia, LLC HP-CWS-R05-350-N	Sintered			350 mm	13.78 "	Round	Copper	29 W 350 mm	-55 °C	180 °C	Epoxy Solder	Heat Pipe								5 mm	0.197 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.27
		10	$ 8.04
		250	$ 6.26
		1000	$ 5.70

Description

General part information

HP-CWS Series

Heat Pipe Round Copper Sintered
